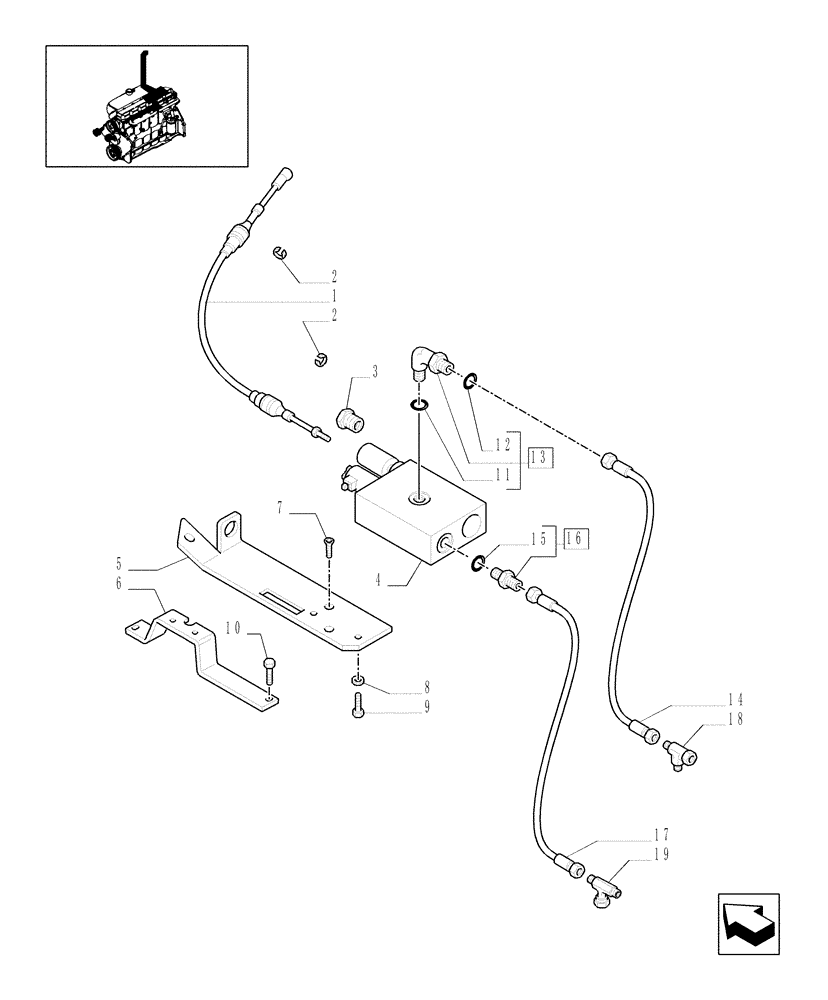

Запчасти Case IH MXU100 (1.15.1/01[03]) - (VAR.154) EXAUST BRAKE - VALVE AND ASSOCIATED PARTS (02) - ENGINE EQUIPMENT

1

47057616

BOWDEN CONTROL

1шт.

2

47057352

RING, SNAP

RING SNAP

2шт.

3

47057456

ADAPTER

1шт.

4

47056317

BRAKE VALVE

1шт.

5

47057351

BRACKET

1шт.

6

47057350

BRACKET

1шт.

7

13301111

SCREW,Pozidriv Flat Hd, Csk, M6 x 12mm, Cl 5.8

1шт.

8

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

9

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

47123008

ELBOW

M12 x 1.5, 9/16-18

1шт.

14

47057441

HOSE,6.40 mm ID x 2200.00 mm, SAE J516

9/16-18, 11/16-16X2200 MM

1шт.

15

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

1шт.

16

82019386

HYD CONNECTOR

M12X1,5, 9/16-18

1шт.

17

47057442

FLEXIBLE HOSE

9/16-18, 13/16-16X2100 MM

1шт.

18

47057459

TEE

11/16-16

1шт.

19

82006130

TEE

13/16-16

1шт.
