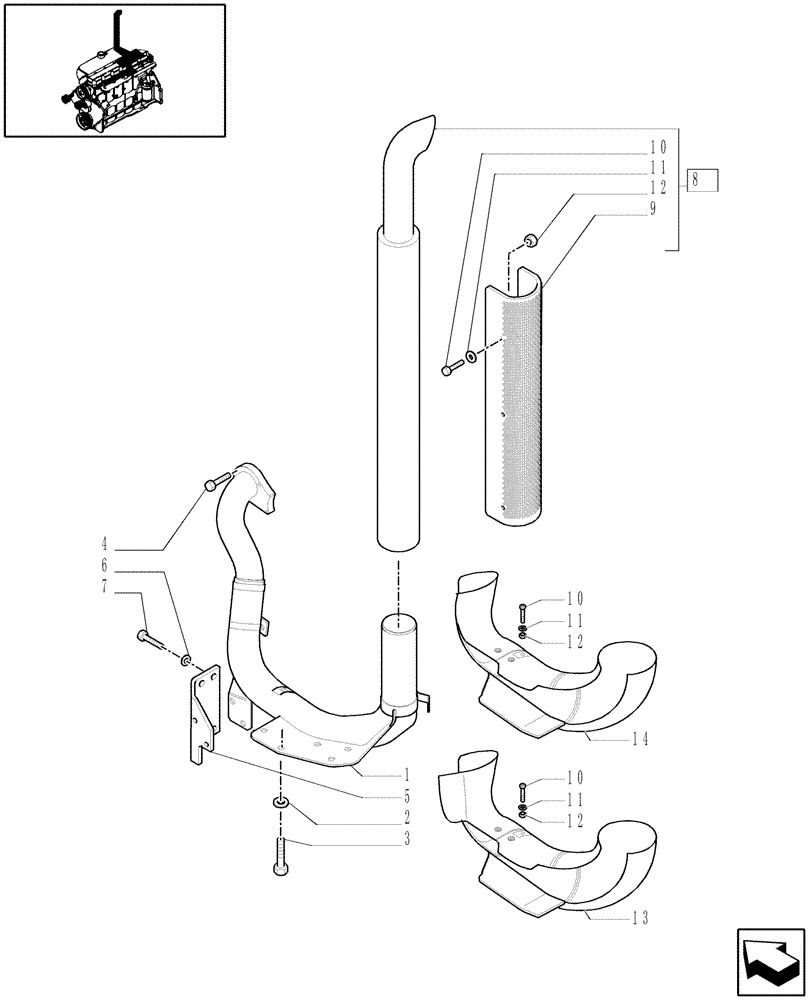

Запчасти Case IH MXU100 (1.15.1[01]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

82038741

EXHAUST SYSTEM PIPE

Incl. 10 - 13, Serial Range: -C5094

1шт.

1

87305649

EXHAUST SYSTEM PIPE

Incl. 10 - 12, 14, Start Serial: D5094

1шт.

2

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

3

80300388

SCREW,M12 x 25mm

7шт.

4

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

82036784

SUPPORT

Muffler Bracket for Less Loader Ready

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

7

11115521

SCREW,Hex, M14 x 30mm, Cl 8.8

4шт.

8

82027832

EXHAUST SYSTEM PIPE

1шт.

8

87324753

MUFFLER

Equip. 545

1шт.

8

82027853

MUFFLER

Pre-Cleaner, Equip. 198

1шт.

9

82035359

SHIELD

1шт.

10

14759521

SCREW,M6 x 14mm

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

13

82035356

SHIELD

, Serial Range: -C5094

1шт.

14

87305791

SHIELD

, Start Serial: D5094

1шт.
