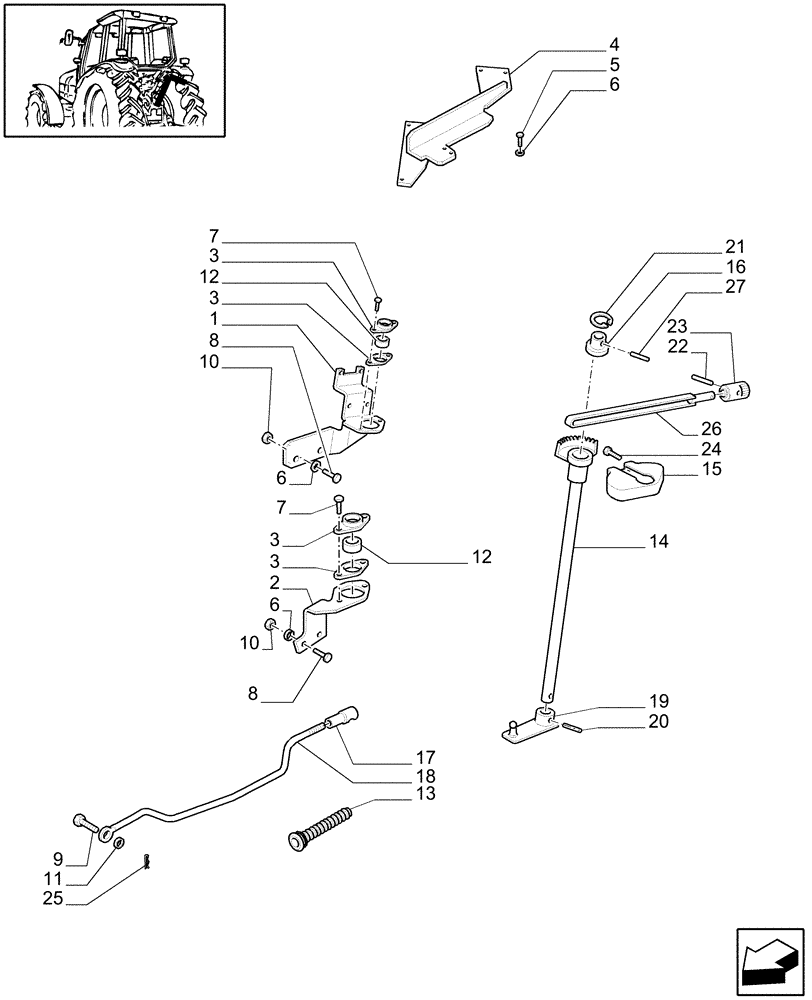

Запчасти Case IH MXU100 (1.96.1/01[02]) - (VAR.834) LIFT EXTERNAL CONTROLS - LEVERS & SUPPORT (W/CAB) (10) - OPERATORS PLATFORM/CAB

1

5172759

SUPPORT

1шт.

2

5195733

SUPPORT

1шт.

3

5110722

CUP

4шт.

4

82031653

SUPPORT

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

6

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

6шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

81864078

PIN

1шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

5127536

BUSHING,20.5mm ID x 32mm OD

2шт.

13

82037424

FLEXIBLE SHEATH

1шт.

14

5170979

CONTROL SHAFT

1шт.

15

5171028

COVER

1шт.

16

5171002

HUB

1шт.

17

15152690

BALL JOINT

1шт.

18

82031726

TIE-ROD

1шт.

19

82031536

LEVER

1шт.

20

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

21

11059974

SNAP RING,M40, Int

1шт.

22

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

23

5144119

KNOB

1шт.

24

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

25

80280250

COTTER PIN,3/32" x .75" L

1шт.

26

5171022

LEVER

1шт.

27

14601370

LOCK PIN,M5 x 30, Slotted

1шт.
