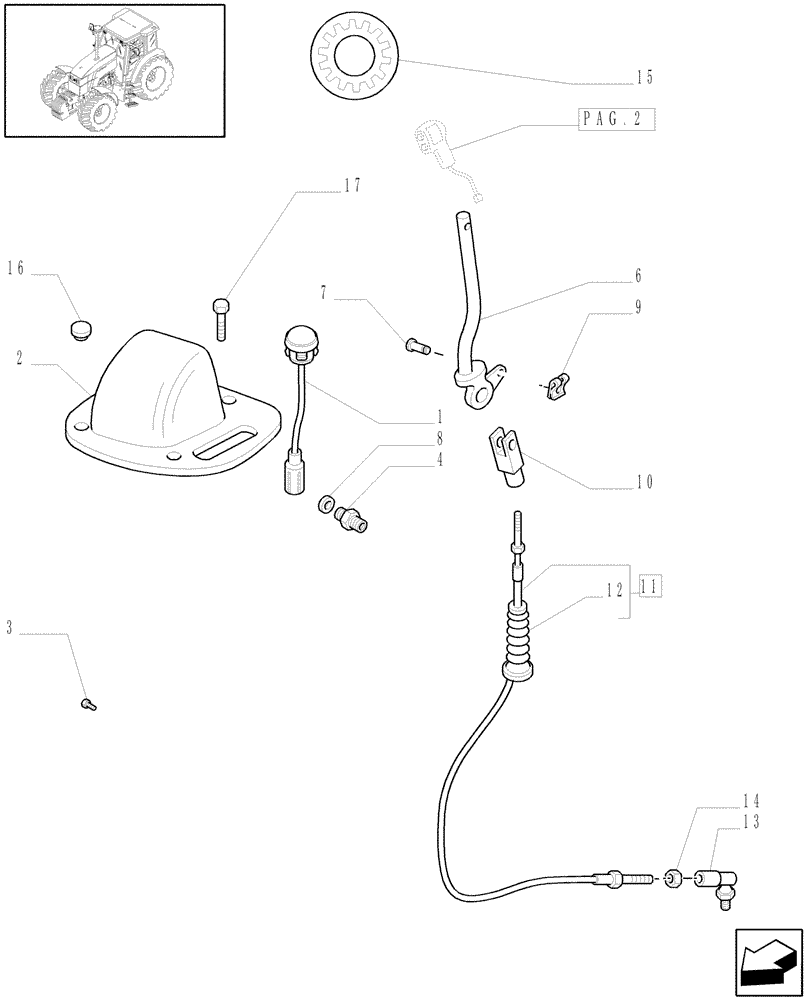

Запчасти Case IH MXU100 (1.96.0/02[01]) - (VAR.085-087) 16X16 (SPS) W/P. SHUTTLE & ADV. HARNESS - GEARBOX CONTROL (10) - OPERATORS PLATFORM/CAB

1

87331742

SWITCH ASSY

HTS

1шт.

2

82037206

SOFT TRIM

L/CAB

1шт.

3

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

4

82025694

SPACER,M8 x 1.25 x 67mm

3шт.

6

87302828

LEVER

1шт.

7

82026076

PIN,8mm OD x 21.85mm L

1шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

11064071

CLIP,M8 x 6 x 0.94mm

1шт.

9

82850690

CLIP,M5

1шт.

10

10248271

YOKE,M8

1шт.

11

84151594

CABLE,1943mm L

1шт.

12

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

13

82032051

BALL JOINT

L/CAB

1шт.

14

11701721

NUT,M10, Cl 10

L/CAB

1шт.

15

82032834

DECAL

1шт.

16

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

17

82880737

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

17

13300214

SCREW,Pozidriv Flat Hd, M5 x 35mm, Cl 5.8

L/Cab

1шт.
