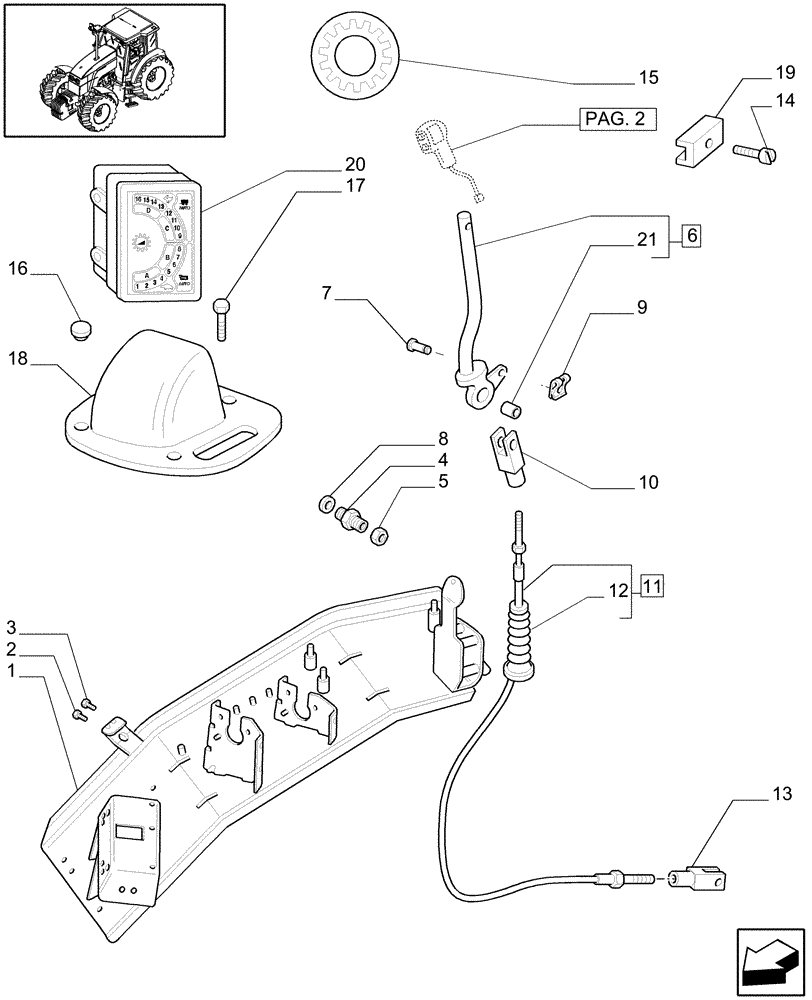

Запчасти Case IH MXU100 (1.96.0/01[01]) - (VAR.129-140-147) TRANSMISSION 16X16 (SPS) - GEARBOX CONTROL (10) - OPERATORS PLATFORM/CAB

1

82036650

SUPPORT

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

3

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

4

82025694

SPACER,M8 x 1.25 x 67mm

3шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

87302828

LEVER

1шт.

7

82026076

PIN,8mm OD x 21.85mm L

1шт.

8

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

11064071

CLIP,M8 x 6 x 0.94mm

1шт.

10

10248271

YOKE,M8

1шт.

11

84151594

CABLE,1943mm L

1шт.

12

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

13

10007871

YOKE,8mm ID Pin Hole, M8 x 42mm L

1шт.

14

13274214

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

3шт.

15

82032834

DECAL

1шт.

16

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

17

82880737

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

18

47057018

PANEL

1шт.

19

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

3шт.

20

47130180

DISPLAY

DISPLAY OF GEARS - BASIC

1шт.

L/Headland Turn System

1шт.

20

47130171

DISPLAY

DISPLAY OF GEARS - ADVANCED, Serial Range: -C5513

1шт.

W/Headland Turn System

1шт.

20

87569995

DISPLAY

, Start Serial: D5513

1шт.

W/Headland Turn System

1шт.

21

82000772

BUSHING,20mm ID x 23mm OD x 25mm L

1шт.
