Запчасти Case IH MXU100 (1.14.6[01]) - FUEL, LINES - C5330 (02) - ENGINE EQUIPMENT

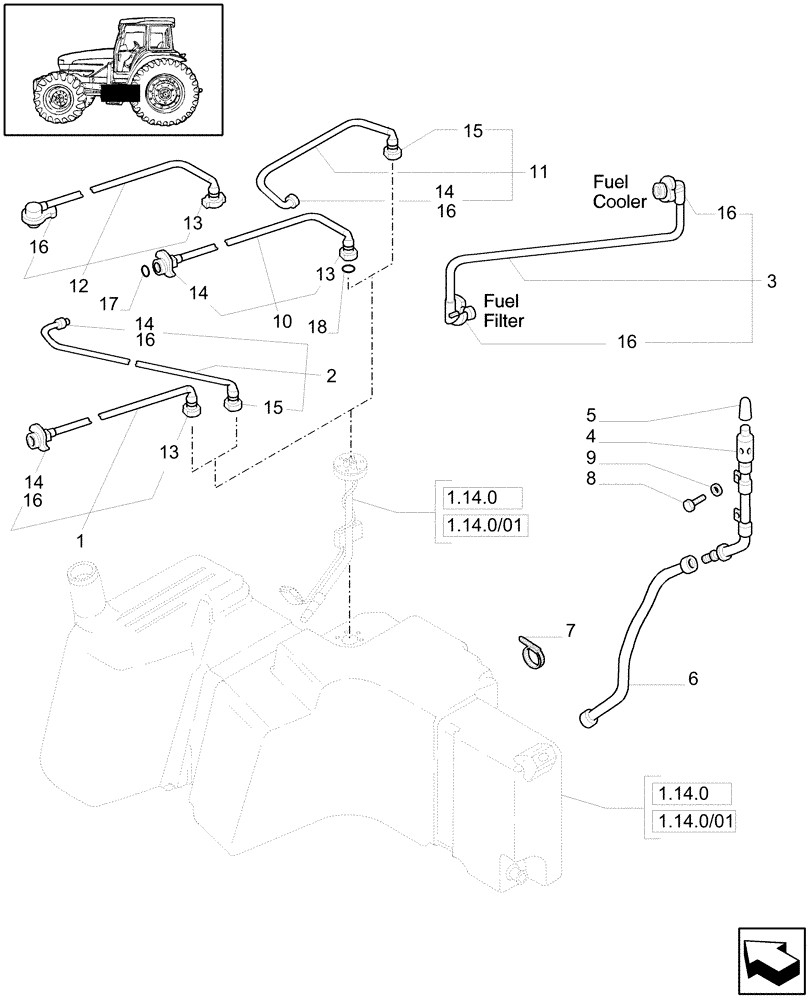

Схема запчастей Case IH MXU100 - (1.14.6[01]) - FUEL, LINES - C5330 (02) - ENGINE EQUIPMENT
14
7
5
1.14.0/01
14
16
13
11
15
8
14
12
4
17
1.14.0
16
18
9
16
3
16
16
13
1
16
1.14.0
6
1.14.0/01
15
14
13
10
2

Артикул

Название

Примечание

Количество

1

82028470

TUBE,960 mm Length

Fuel Feed, 4 Cyl. Mech., Incl. Ref. 13 & 14, L=MM.960, MXU100, Serial Range: -C5072

1шт.

1

82028486

TUBE,8 mm OD, 1150 mm Length

Tank to Cooler, Incl. Ref. 13 & 16, L=MM.1150, MXU110, MXU125, MXU135

1шт.

1

82028472

TUBE

Fuel Feed, 6 Cyl. Mech., Incl. Ref. 13 & 14, L=MM.1220, MXU115, Serial Range: -C5072

1шт.

2

82028471

TUBE

Fuel Return, Incl. Ref. 14 & 15, MXU100, MXU115, Serial Range: -C5072

1шт.

2

82028475

FUEL TUBE,8mm OD X 960 mm

Fuel Return, Electrical, Incl. Ref. 15 & 16, MXU110, MXU125, MXU135

1шт.

3

82028488

TUBE

Cooler to Filter, L=MM.850, MXU110, MXU125, MXU135

1шт.

4

82020728

TUBE

Ventilation

1шт.

5

82012157

PLUG

1шт.

6

82020730

TUBE,580 mm Length

Tank to Valve

1шт.

7

5112712

COLLAR,M4.8 x 283

1шт.

8

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

87307964

TUBE,8 mm DIA

Feed, 4 Cyl. Mech., MXU100, Incl. 13, 14, Serial Range: D5072-C5253

1шт.

10

87307962

TUBE,8 mm DIA

Feed, MXU115, Incl. 13, 14, Start Serial: D5072

1шт.

11

87307766

TUBE,8 mm DIA

Return, 4 Cyl. Mech., Incl. Ref. 14 & 15, MXU100, Start Serial: D5072

1шт.

11

87307763

TUBE,8 mm DIA

Return, 6 Cyl. Mech., Incl. Ref. 15 & 16, MXU115, Start Serial: D5072

1шт.

12

87370924

TUBE,8 mm DIA x 900, 100 mm L

Feed, MXU100, Start Serial: D5253

1шт.

13

82028479

FITTING

6шт.

14

82028481

FITTING

6шт.

15

82028480

COUPLING, QUICK, FEM

4шт.

16

82028482

FITTING

6шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

Выбрано товаров: 23
