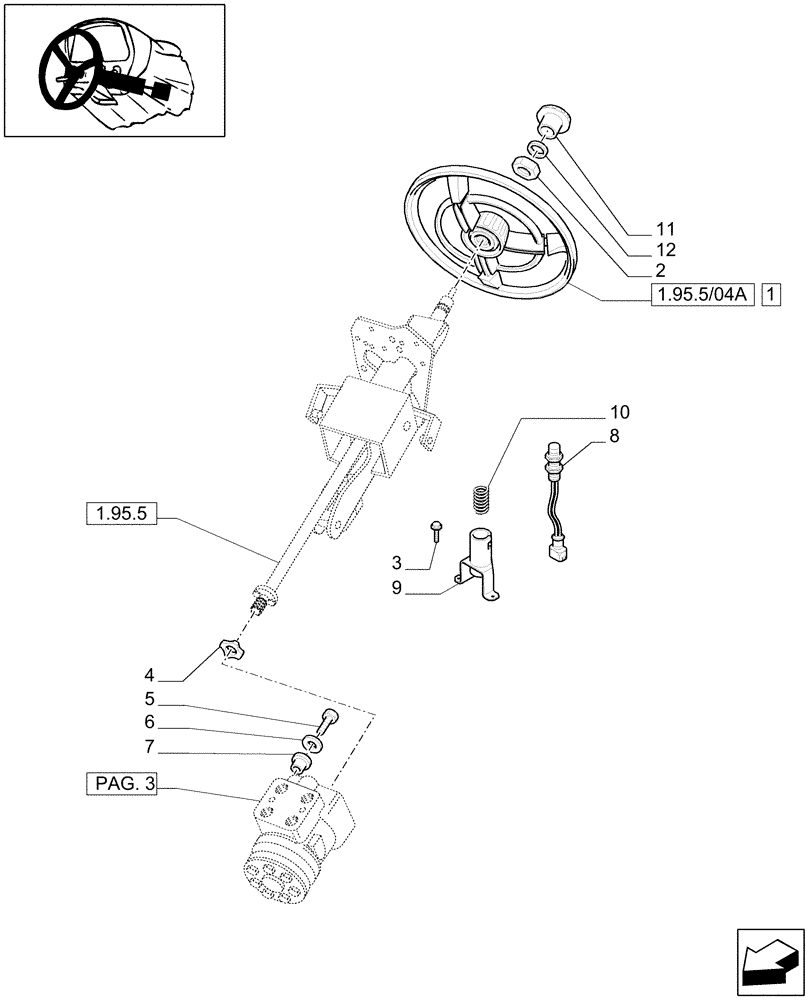

Запчасти Case IH MXU100 (1.95.5/04[01]) - (VAR.360-636) FAST STEERING - WHEEL AND COLUMN (10) - OPERATORS PLATFORM/CAB

1

87330391

STEERING WHEEL

ASSY, Start Serial: D5123

1шт.

1

87302006

STEERING WHEEL

ASSY, Serial Range: -C5123

1шт.

2

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

3

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

4

81873344

RUBBER INSULATOR

1шт.

5

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

4шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

7

82009429

ISOLATOR

4шт.

8

84056994

SENSOR

Fast Steering, Serial Range: -C5123

1шт.

9

87314955

BRACKET

, Serial Range: -C5762

1шт.

9

87650958

BRACKET

, Start Serial: D5762

1шт.

10

82012555

SPRING

1шт.

11

87350612

KNOB

, Start Serial: D5123

1шт.

12

47136225

PLUG

, Start Serial: D5123

1шт.
