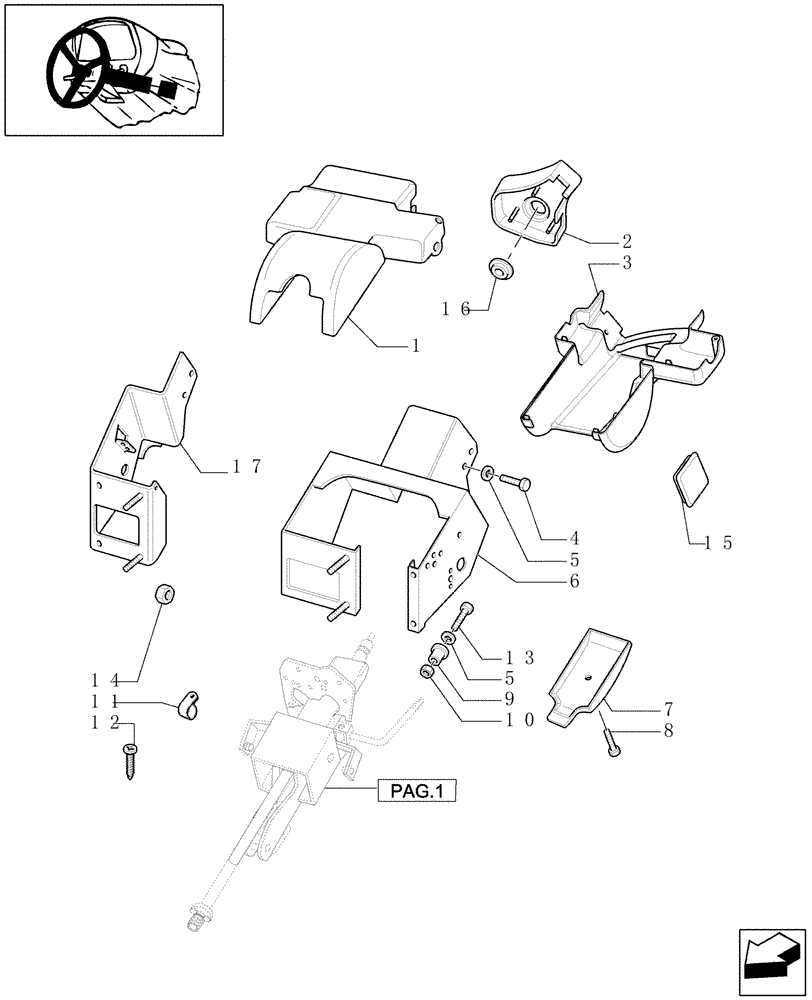

Запчасти Case IH MXU100 (1.95.5/01[02]) - (VAR.110-120-300-300/1) TRANSMISSION 12X12 - COVERING SUPPORT - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

82036757

COVER

1шт.

2

82035019

COVER

1шт.

3

82036445

COVER

1шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

6

87333850

SUPPORT

, Serial Range: -C6260

1шт.

7

82036958

HANDLE

Column Adjust

1шт.

8

83959742

SCREW,Phillips Drive, Oval HD, M6 x 10mm, Cl 4.8

6шт.

9

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

10

11701721

NUT,M10, Cl 10

2шт.

11

82036750

CLAMP,10mm ID, 4mm Bolt Hole, P Type

1шт.

12

15959301

SELF-TAP SCREW,M5 x 3 x 25.00mm, R40, ZND

4шт.

13

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

14

16104121

NUT,M8 x 1.25, Cl 10

1шт.

15

82004988

PLUG

1шт.

16

82038936

SPACER

D=5

2шт.

17

87579189

SUPPORT

, Start Serial: D6260

1шт.
