Запчасти Case IH MXM190 (1.17.0/87) - CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT

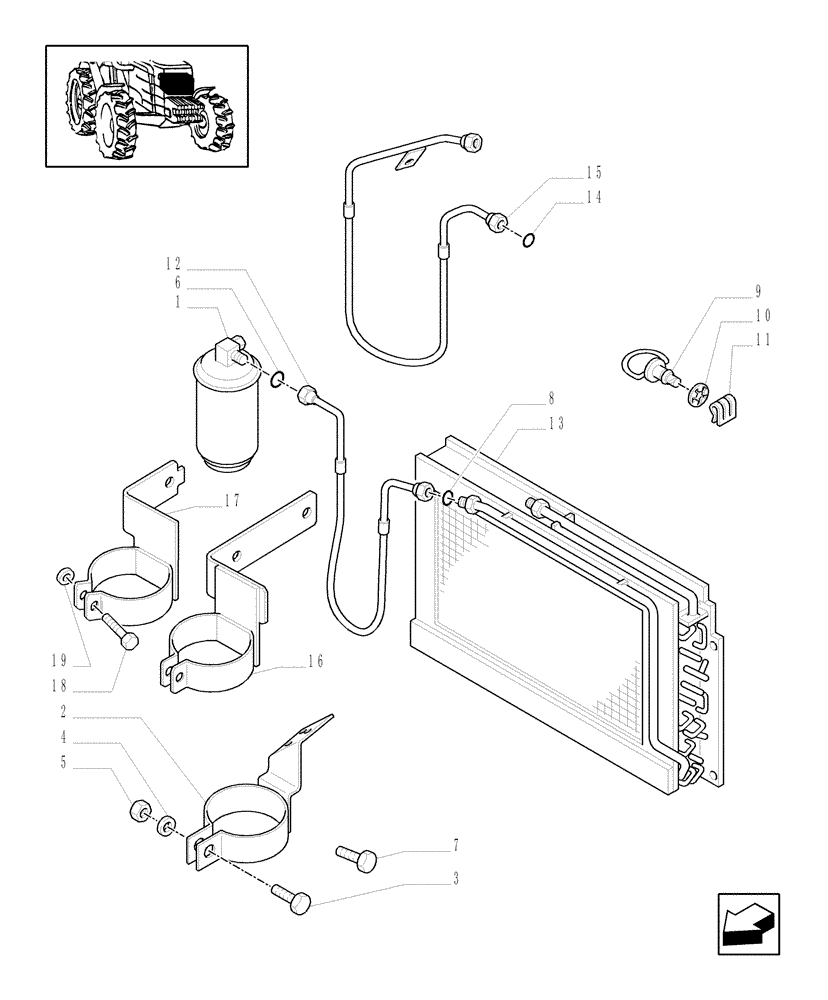

Схема запчастей Case IH MXM190 - (1.17.0/87) - CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT
18
14
3
8
17
1
5
9
2
6
19
10
13
11
7
16
4
12
15

Артикул

Название

Примечание

Количество

1

82023593

RECEIVER-DRYER

, Serial Range: -217254

1шт.

1

87374420

RECEIVER-DRYER

, Start Serial: 217255

1шт.

2

82026483

BRACKET

, Serial Range: -217254

1шт.

3

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

6

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

5/16" ID x .070" Thk, Green

2шт.

7

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

1шт.

8

82000789

O-RING,1.85mm Thk x 17.6mm ID

Green

2шт.

9

82011199

STUD

1/4" Turn

1шт.

10

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

11

82004582

CLIP,Square, 25mm

1шт.

12

82026489

TUBE,10 mm OD, 298 mm Length

Incl. 6, 8, Serial Range: -217254

1шт.

Dehydrator to Condenser

1шт.

12

82033295

TUBE,10 mm OD, 156, 62 mm Length

MXM120, MXM130, MXM140, MXM155, Start Serial: 217255

1шт.

Dehydrator to Condenser

1шт.

12

82033481

TUBE,10 mm OD, 288, 132 mm Length

MXM175, MXM190, Start Serial: 217255

1шт.

Dehydrator to Condenser

1шт.

13

82023592

CONDENSER

, Serial Range: -217254

1шт.

13

82033407

CONDENSER

, Start Serial: 217255

1шт.

14

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

15

82026490

TUBE,12.7 mm OD, 299 mm Length

Incl. 14, Serial Range: -217254

1шт.

15

82033293

TUBE,12.7 mm OD, 482, 395 mm Length

MXM120, MXM130, MXM140, MXM155, Start Serial: 217255

1шт.

15

82033519

TUBE,12.7 mm OD, 395, 482 mm Length

MXM175, MXM190, Start Serial: 217255

1шт.

16

82033517

BRACKET

, Serial Range: 217255-ACM264533

1шт.

17

87365129

BRACKET

, Start Serial: D5252

1шт.

18

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

1шт.

19

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

Выбрано товаров: 28
