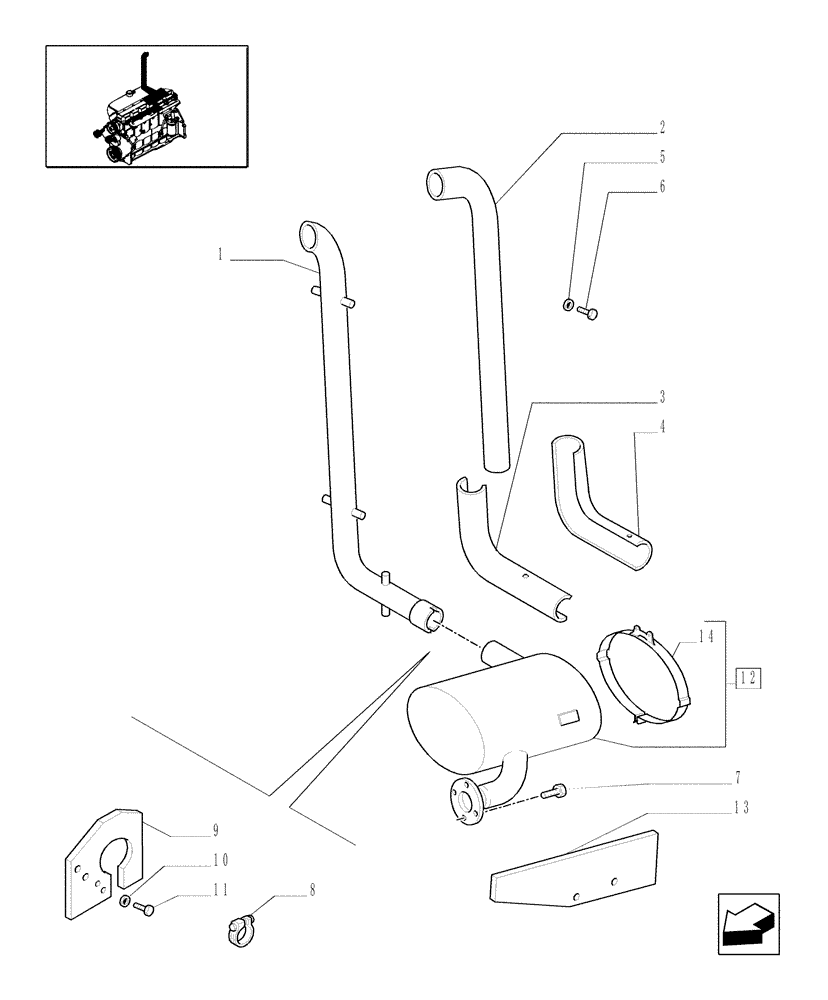

Запчасти Case IH MXM190 (1.15.1/01) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

82025994

EXHAUST SYSTEM PIPE

Incl. 2, 3, 4

1шт.

2

82026030

SHIELD

Upper

1шт.

3

82026032

SHIELD

Front lower

1шт.

4

82026034

SHIELD

Rear lower

1шт.

5

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

8шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

7шт.

8

82022918

CLAMP,102mm - 107mm

1шт.

9

82033467

BRACKET

1шт.

10

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

2шт.

10

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

11

80300388

SCREW,M12 x 25mm

M12 x 35

2шт.

11

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

2шт.

12

82017434

MUFFLER

Assy

1шт.

13

82032519

GUARD

1шт.

14

82037066

SUPPORT,1128mm L x 404.5mm W

1шт.
