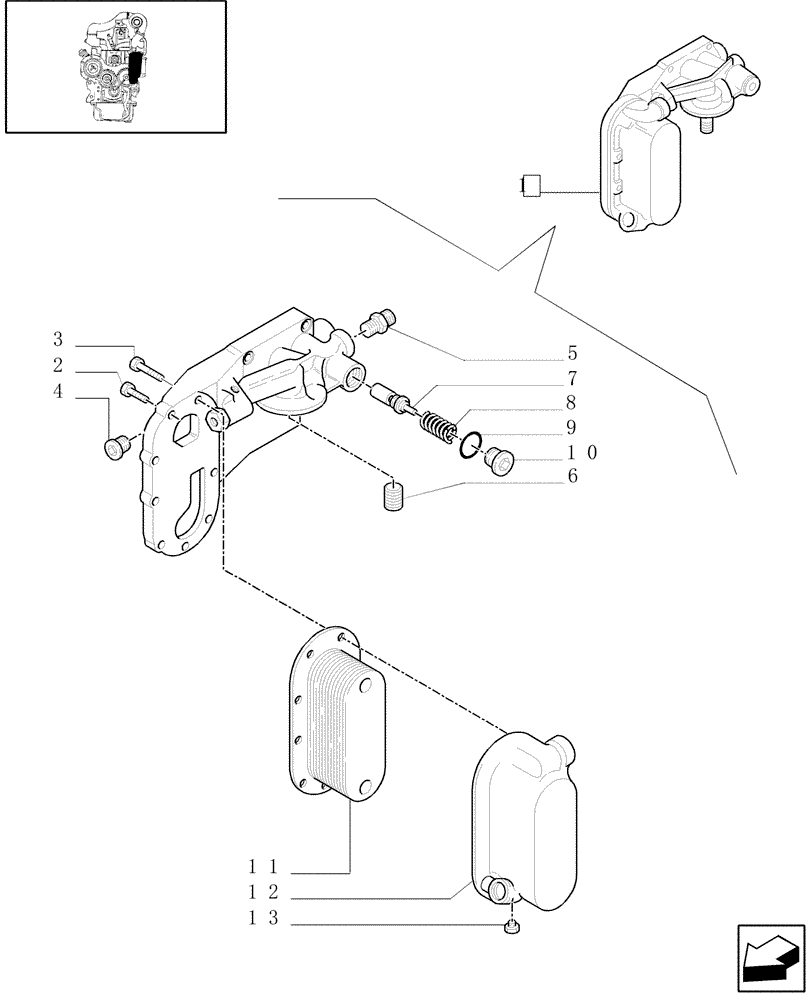

Запчасти Case IH MXM190 (0.31.0/ A) - CRANKCASE OIL COOLER - BREAKDOWN (01) - ENGINE

1

87802763

OIL COOLER

Assy

1шт.

2

83958603

FLANGE BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8"-16 x 1-3/4"

7шт.

3

81868845

FLANGE BOLT,Hex, 3/8" - 16 x 2 1/2"

Cap, Flg Hd, USR, 3/8"-16 x 2-1/2"

2шт.

4

83948690

PLUG

3шт.

5

81876834

HYD CONNECTOR

1шт.

6

E5HN6890AA

INSERT

1шт.

7

81876837

VALVE PRESSURE RELIE

1шт.

8

81876836

SPRING

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

10

83925030

PLUG,1 1/16"-12 SAE

1шт.

11

87380919

OIL COOLER

1шт.

12

87802758

COVER

1шт.

13

80088071

PLUG

1шт.
