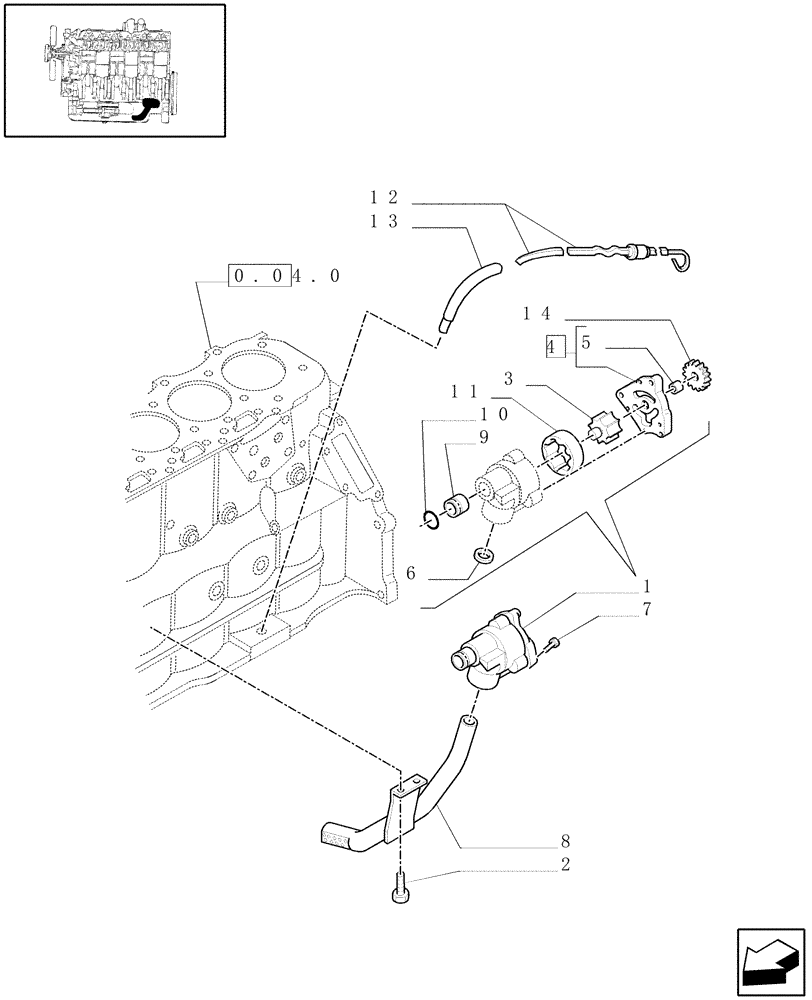

Запчасти Case IH MXM190 (0.30.0) - PUMP, ENGINE OIL (01) - ENGINE

1

87802585

ENGINE OIL PUMP

1шт.

87802585R

REMAN-ENG OIL PUMP

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, ALL (6/02-)

1шт.

87802585C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Hex Flg Hd, G5, 3/8"-16 x 3/4"

2шт.

3

87802588

SHAFT

1шт.

4

87802587

COVER

1шт.

5

83999708

BUSHING

1шт.

6

14463881

O-RING,1.359" ID x 0.139" Width

1шт.

7

80087657

SCREW

Cap, HH, G5, 5/16"-18 x 1-1/4"

3шт.

8

87840086

TUBE,1.38" OD

1шт.

9

83999696

SLEEVE

1шт.

10

14463081

O-RING,0.859" ID x 0.139" Width

1шт.

11

87802589

ROTOR

1шт.

12

87801536

DIPSTICK

1шт.

13

81879192

TUBE,9.65 mm OD, 175.5, 96.3 mm Length

1шт.

14

83999693

GEAR

1шт.
