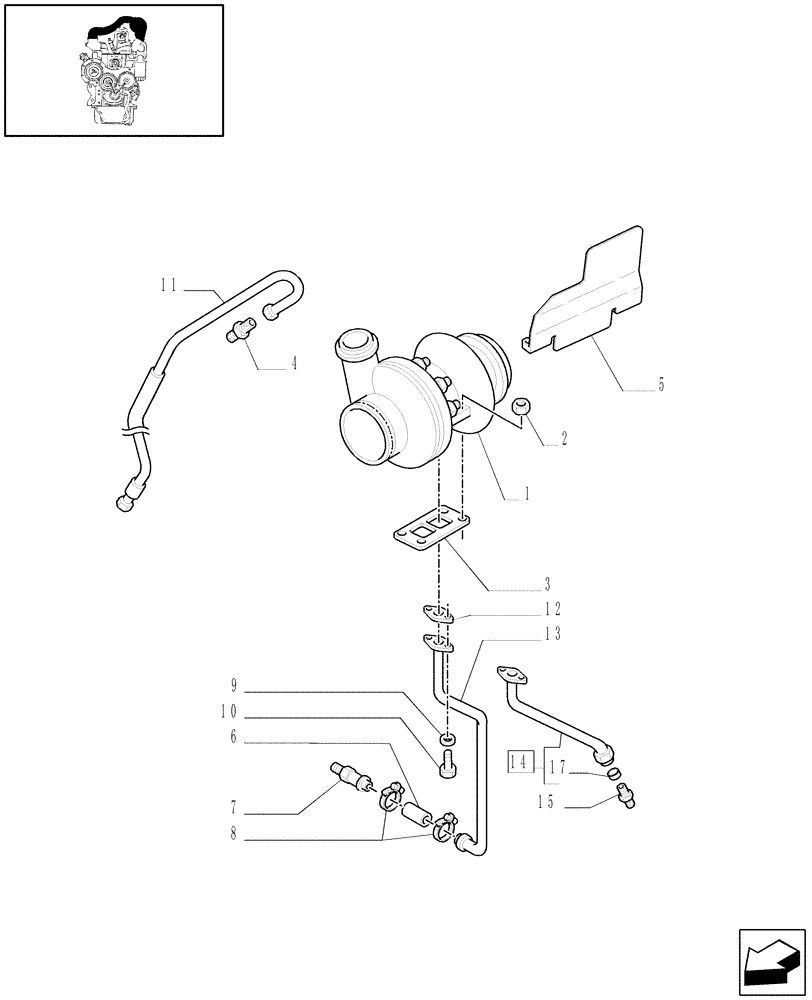

Запчасти Case IH MXM190 (0.24.0) - TURBOCHARGER & RELATED PARTS (01) - ENGINE

1

87802480

TURBOCHARGER

MXM120, MXM130, MXM140, MXM155

1шт.

1

87802480R

REMAN-TURBOCHARGER

MXM120, MXM130, MXM140, MXM155

1шт.

1

87802480C

CORE

Return Number

1шт.

1

87802482

TURBOCHARGER

MXM175, MXM190

1шт.

1

87802482R

REMAN-TURBOCHARGER

MXM175, MXM190 Both (6/02-)

1шт.

1

87802482C

CORE-TURBOCHARGER

Return Number

1шт.

2

87803212

NUT

3/8"-24

4шт.

3

83911642

GASKET

1шт.

4

87802213

ADAPTER

1шт.

5

87803006

SHIELD

2шт.

6

87801937

HOSE

MXM140, MXM155, MXM175, MXM190

1шт.

7

81876817

FITTING

MXM140, MXM155, MXM175, MXM190

1шт.

8

82039344

HOSE CLAMP,20mm - 32mm

MXM140, MXM155, MXM175, MXM190

2шт.

9

82879357

LOCK WASHER

2шт.

10

81876833

FERRULE

2шт.

11

82028972

HOSE ASSY.

Oil Supply

1шт.

12

83953341

GASKET

, Serial Range: -ù

1шт.

13

87802931

TUBE,19 mm OD x 477.9, 103.4 mm L

MXM140, MXM155, MXM175, MXM190

1шт.

14

87802523

TUBE,15.87 mm OD x 432 mm L

MXM120, MXM130

1шт.

15

81876834

HYD CONNECTOR

MXM120, MXM130

1шт.

17

81876833

FERRULE

1шт.
