Запчасти Case IH MXM190 (0.14.0[04]) - 2 FILTERS FUEL SYSTEM (01) - ENGINE

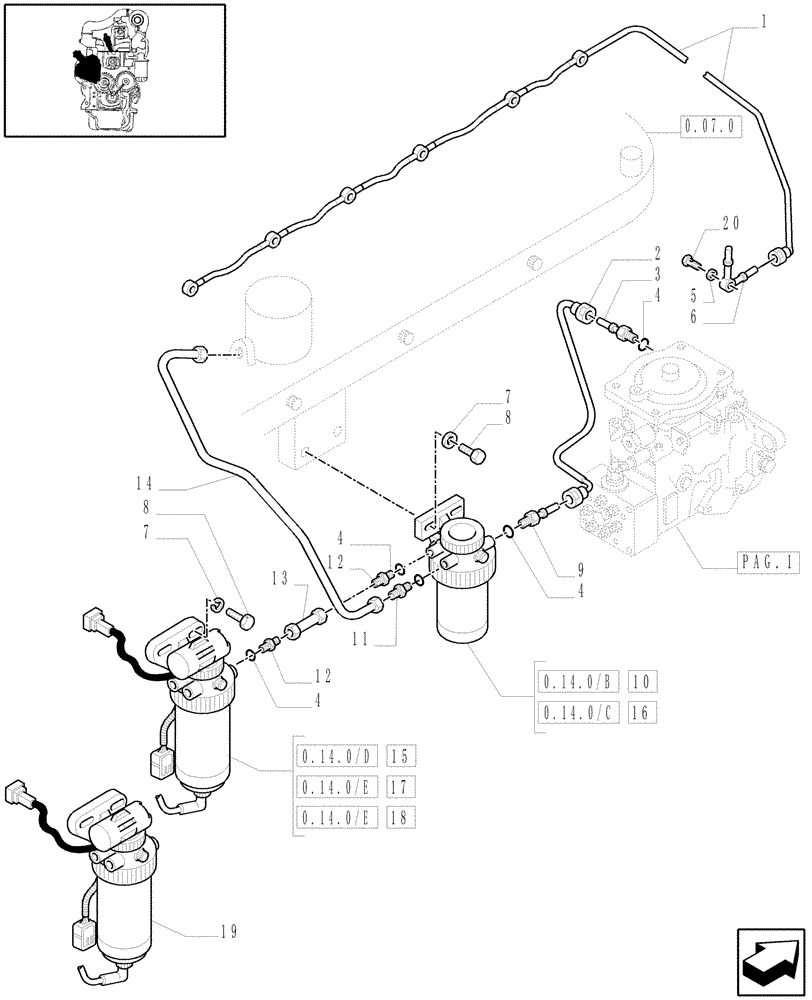

Схема запчастей Case IH MXM190 - (0.14.0[04]) - 2 FILTERS FUEL SYSTEM (01) - ENGINE
8
6
1
1
1
1
4
7
4
3
2
2
1
5
1
2
5
1
7
1
19
1
6
4
8
7
0
8
1
20
1
4
1
3
0.14.0/b
0.14.0/c
0.14.0/d
0.14.0/e
0.14.0/e
0.07.0
pag.1
9
4

Артикул

Название

Примечание

Количество

1

87802623

TUBE

1шт.

2

87802681

TUBE

1шт.

3

87802682

HYD CONNECTOR

M12X1.5

1шт.

4

83904845

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

5шт.

5

87801445

COPPER WASHER,12.3mm ID x 17mm OD x 1.75mm Thk

1шт.

6

87802604

ELBOW

1шт.

7

83908991

WASHER,0.41" ID x 0.75" OD x 0.1" Thk

4шт.

8

83935461

HEX SOC SCREW,3/8" - 16 x 1.50"

4шт.

9

82012598

FITTING

1/2-20

1шт.

10

87802168

FILTER ASSY

Fuel, 5 Micron, Serial Range: -218235

1шт.

11

82894025

FITTING

3/16", 1/2"-20

1шт.

12

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

2шт.

13

87801397

FUEL TUBE,8.05 mm OD x 79 mm L

9/16"-24

1шт.

14

87801627

TUBE,4.75 mm OD x 178.3, 155.7 mm L

3/8"-24, 3/16"

1шт.

15

87802331

FILTER ASSY

Fuel, 30 Micron, Serial Range: -218235

1шт.

16

87339387

FILTER ASSY

Fuel, Start Serial: D5368

1шт.

16

87803436

FILTER ASSY

Fuel, 5 Micron, Serial Range: 218236-C5368

1шт.

17

87803437

FILTER ASSY

Fuel, 30 Micron, Serial Range: 218236-HA163029

1шт.

18

87327686

FILTER ASSY

Fuel, Serial Range: HA163030-FB175163

1шт.

19

87374411

FILTER ASSY

Fuel, Start Serial: FB175163

1шт.

20

NSS

NOT SOLD SEPARAT

Included on the inejction pump

1шт.

Выбрано товаров: 21
