Запчасти Case IH MXM190 (0.14.0[01]) - FUEL SYSTEM (01) - ENGINE

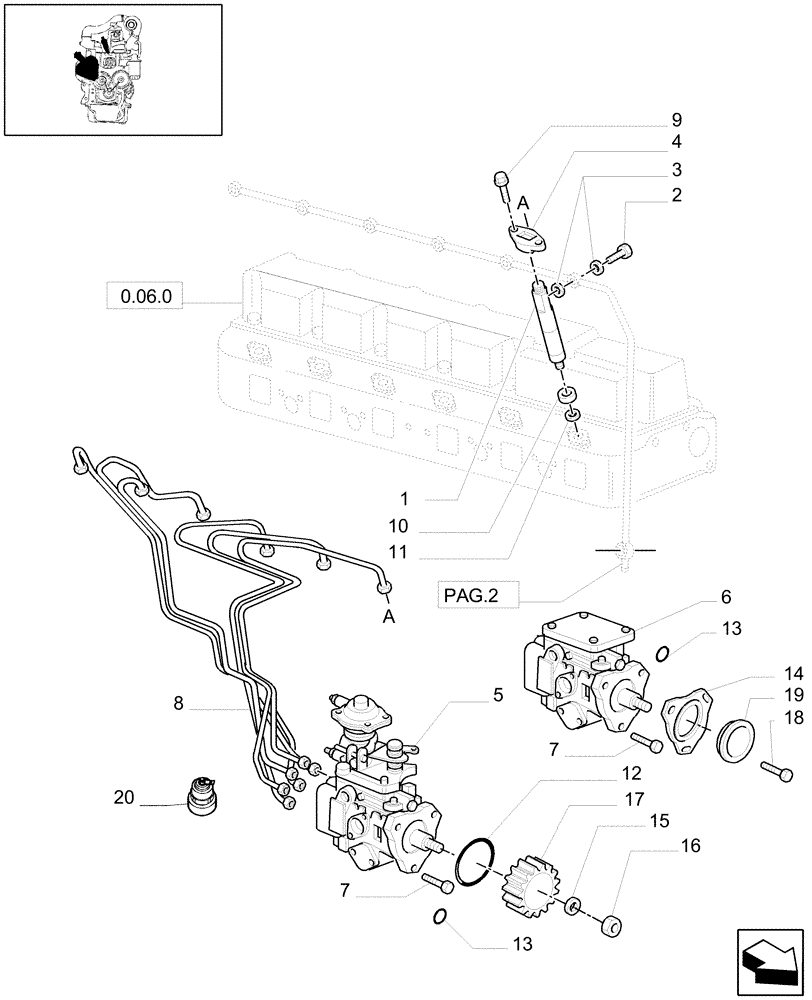

Схема запчастей Case IH MXM190 - (0.14.0[01]) - FUEL SYSTEM (01) - ENGINE
13
7
a
2
a
16
10
9
13
17
1
8
g
.
a
2
7
15
20
6
5
11
18
3
19
p
14
4
0.06.0
12

Артикул

Название

Примечание

Количество

1

87802537

FUEL SYSTEM INJECTOR

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190

6шт.

C4874 for MXM175, MXM190 Only

1шт.

1

87802537R

REMAN-INJECT NOZZLE

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190 All (6/02-)

6шт.

1

87802537C

CORE-NOZZLE, INJECT

Return Number

6шт.

1

87803276

FUEL SYSTEM INJECTOR

MXM175, MXM190, Start Serial: D4874

6шт.

1

87802536R

REMAN-INJECT NOZZLE

MXM175, MXM190, Both D4875-, Reman For New P/N's 87803276 & 87802536,

6шт.

1

87802536C

CORE-NOZZLE, INJECT

Return Number

6шт.

2

87800617

BOLT

6шт.

3

87803665

WASHER

6шт.

4

83958141

BRACKET

6шт.

5

87802534

FUEL INJECTION PUMP

MXM120

1шт.

5

87802534R

REMAN-INJECTION PUMP

Reman for New PN 87802534

1шт.

5

87802534C

CORE-INJECTION PUMP

Return Number

1шт.

5

87802532

FUEL INJECTION PUMP

MXM130

1шт.

5

87802532R

REMAN-INJECTION PUMP

Reman for New PN 87802532

1шт.

5

87802532C

CORE-INJECTION PUMP

Return Number

1шт.

5

87802535

FUEL INJECTION PUMP

MXM140

1шт.

5

87802535R

REMAN-INJECTION PUMP

Reman for New PN 87802535

1шт.

5

87802535C

CORE-INJECTION PUMP

Return Number

1шт.

5

87802533

FUEL INJECTION PUMP

MXM155

1шт.

5

87802533R

REMAN-INJECTION PUMP

Reman for New PN 87802533

1шт.

5

87802533C

CORE-INJECTION PUMP

Return Number

1шт.

6

87803357

FUEL INJECTION PUMP

MXM175, MXM190

1шт.

6

87803357R

REMAN-FUEL INJ PUMP

MXM175 Use w/ Eng. P/N 87803352 Tier 2 , MXM190 Use w/ Eng. P/N 87803351 Tier 2

1шт.

6

87803357C

CORE-FUEL INJ PUMP

Return Number

1шт.

7

87802302

FLANGE BOLT,Hex, M8 x 25mm, Cl 9.8, W/ Patch

M8 x 25, Serial Range: -ACM258720

3шт.

7

87333719

BOLT,Flng, M8 x 35mm, Cl 8.8

M8 x 35,MXM120,MXM130,MXM140,MXM155, Start Serial: ACM258721

3шт.

7

84465299

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

MXM175,MXM190, Start Serial: ACM258721

3шт.

8

87802540

PIPE SET

MXM120, MXM130, MXM140, MXM155

1шт.

8

87802539

PIPE SET

MXM175, MXM190

1шт.

9

87840522

BOLT,Hex Flg, 5/16" - 18 x 1.38"

5/16"-18 x 1-3/8"

12шт.

10

F2NN9F596AA

SEAL,20.6mm ID x 31.8mm OD x 13.2mm Thk

6шт.

11

81873921

SEALING WASHER,7.4mm ID x 13.75mm OD x 1.6mm Thk

6шт.

12

14459381

O-RING,48.9mm ID x 2.62" Width

MXM120, MXM130, MXM140, MXM155

1шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

3шт.

14

87802948

GASKET,0.33mm Thk

MXM175, MXM190

1шт.

15

280248

LOCK WASHER,9/16"

MXM120, MXM130, MXM140, MXM155

1шт.

16

9503259

NUT

MXM120, MXM130, MXM140, MXM155

1шт.

17

87840107

DRIVING GEAR

MXM120, MXM130, MXM140, MXM155

1шт.

18

16287234

FLANGE BOLT,Hex, M8 x 25mm, Cl 10.9, Full Thd

MXM175, MXM190

4шт.

19

87802654

DRIVING GEAR

MXM175, MXM190

1шт.

20

2852741

SOLENOID

Fuel Shutoff

1шт.

Выбрано товаров: 42
