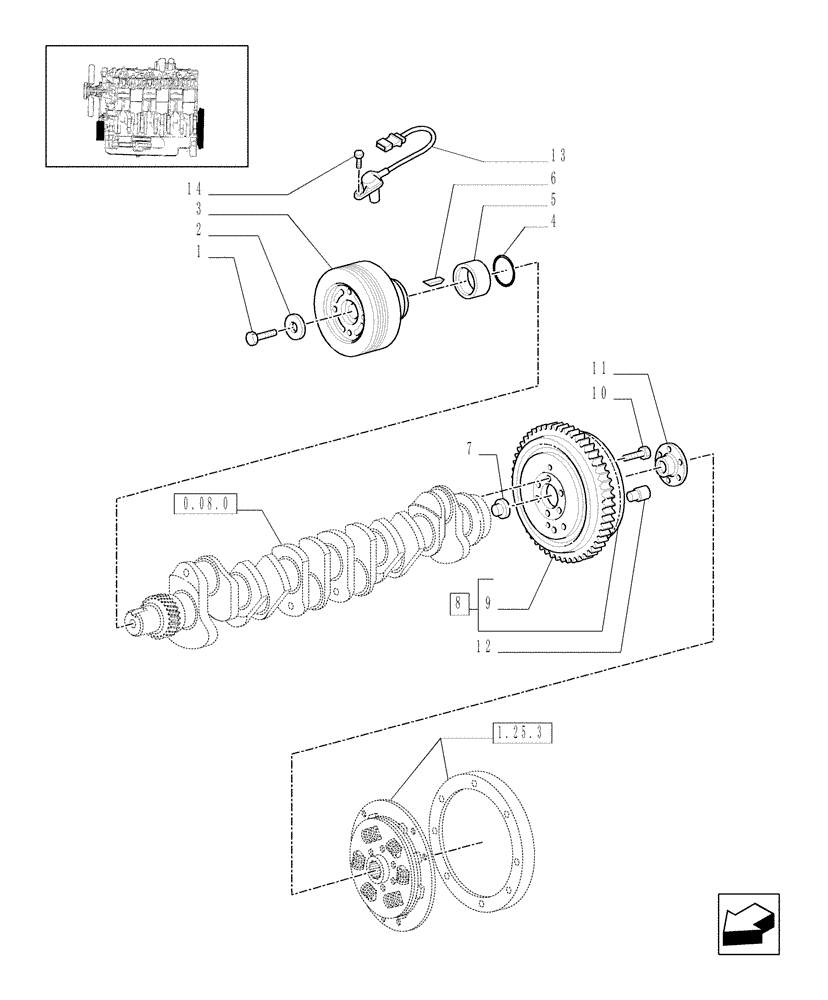

Запчасти Case IH MXM190 (0.08.4) - DAMPER AND FLYWHEEL (01) - ENGINE

1

82895561

BOLT,Hex, 3/4" - 16 x 1 3/4", Gr 5

3/4"-16 x 1-3/4"

1шт.

2

83990589

WASHER,19.68mm ID x 59.689mm OD x 8.13mm Thk

1шт.

3

87802666

DAMPER,193.04mm OD

MXM120, MXM130, MXM140, MXM155

1шт.

3

87802600

DAMPER

MXM175, MXM190

1шт.

4

14459081

O-RING,1.737" ID x 0.103" Width

1шт.

5

87800705

SPACER,44.5mm ID x 60.4mm OD x 25.98mm L

1шт.

6

83956433

WOODRUFF KEY

1шт.

7

82002586

BUSHING,20mm ID x 45mm OD x 18mm L

1шт.

8

82003744

ENGINE FLYWHEEL

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

8

82003745

ENGINE FLYWHEEL,409.54mm OD, W/ Ring Gear

MXM120, MXM130, MXM140, MXM155

1шт.

W/semi power shift trans.

1шт.

8

87802598

ENGINE FLYWHEEL

MXM175, MXM190

1шт.

8

82016351

ENGINE FLYWHEEL

1шт.

W/Full Power Shift Trans. 18 x 6 (40 KPH 4WD) and 17 x 6 (30 KPH) Equip. 281

1шт.

9

83949153

RING GEAR

1шт.

10

82935791

BOLT,Hex, 9/16" - 18 x 1 7/8", Gr 8

Cap, HH, G5, Self-Locking, 9/16"-18 x 1-7/8", MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

10

83909956

BOLT,Hex, 9/16" - 18 x 1 5/8", Gr 8

Self-Locking, 9/16"-18 x 1-5/8"

1шт.

Qty = 6 for Flywheel 82003745 and 82016351, Qty = 8 for Flywheel 87802598

1шт.

11

82001274

HUB

MXM120, MXM130, MXM140

1шт.

W/Mec. Trans. 20 x 16

1шт.

12

81800705

PIN,M7.893 X 13.97mm

1шт.

Qty = 3 for Flywheel 82003745, Qty = 4 for Flywheel 87802598 and 82016351

1шт.

13

82030048

SENSOR

MXM175, MXM190

1шт.

Crankshaft Speed Sensor

1шт.

14

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.
