Запчасти Case IH MXM190 (1.96.2/10) - (VAR.245/1) 3 CONTROL VALVES WITH JOYSTICK WITH SPRUNG CAB (10) - OPERATORS PLATFORM/CAB

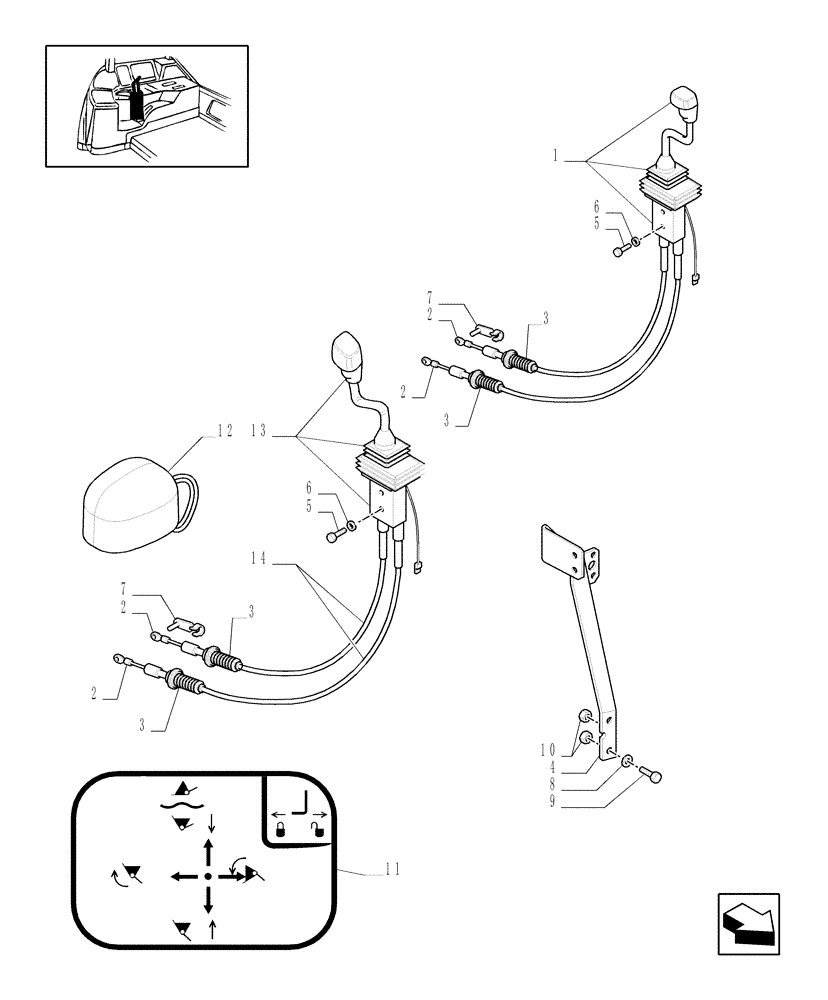

Схема запчастей Case IH MXM190 - (1.96.2/10) - (VAR.245/1) 3 CONTROL VALVES WITH JOYSTICK WITH SPRUNG CAB (10) - OPERATORS PLATFORM/CAB
6
5
13
2
12
9
2
3
2
2
3
7
14
4
1
6
10
11
3
5
8
3
7

Артикул

Название

Примечание

Количество

1

82033837

JOYSTICK

Incl. 2, 3, Start Serial: 200705

1шт.

2

82019805

CLEVIS

2шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

2шт.

4

82022498

BRACKET

1шт.

5

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

82022510

PIN,4.72mm OD x 15.5mm L

2шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

9

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 16

4шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

11

82025300

DECAL

Joystick Control

1шт.

12

82032501

KNOB

W/3 Postion Toggle Switch

1шт.

13

82030545

JOYSTICK

Incl. 2, 3 with bent Joystick Lever, Serial Range: -200704

1шт.

14

82033062

CABLE

1шт.

Выбрано товаров: 14
