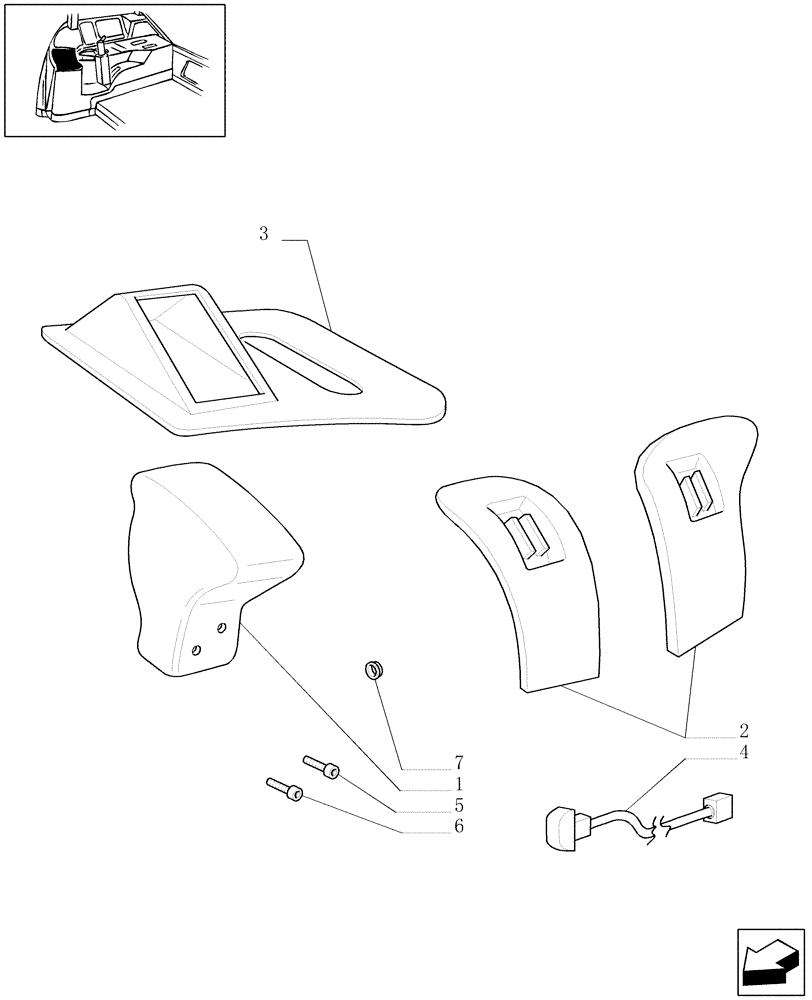

Запчасти Case IH MXM190 (1.96.0[02]) - GEARBOX CONTROL (10) - OPERATORS PLATFORM/CAB

1

293388A2

GRIP

Throttle

1шт.

2

316000A2

GRIP

Handle

1шт.

3

82034416

COVER

Switch, Serial Range: -C5088

1шт.

3

87309878

COVER

Switch, Start Serial: D5088

1шт.

4

82030904

SWITCH ASSY

Up/Down

1шт.

5

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

2шт.

6

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

4шт.

7

81862738

PLUG,M38 x 28 x 5mm

D=28.76

7шт.
