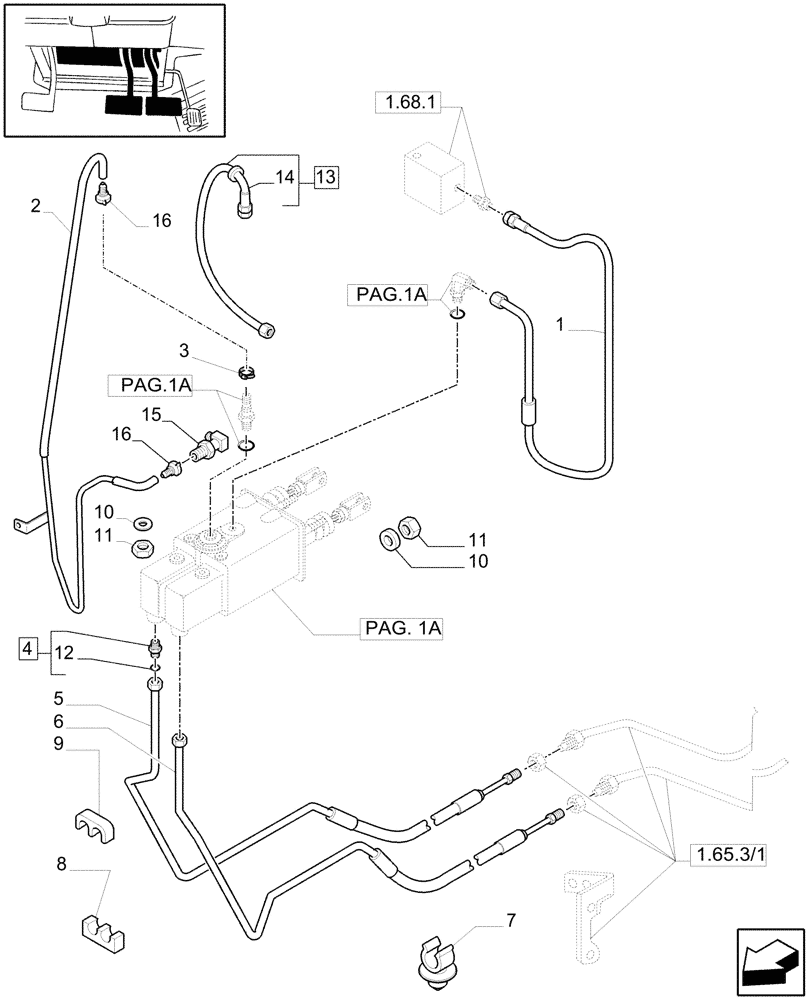

Запчасти Case IH MXM190 (1.95.0/01[02A]) - BRAKE PEDALS - D4879 (10) - OPERATORS PLATFORM/CAB

1

82031537

BRAKE LINE

Return

1шт.

2

82036847

BRAKE LINE

Feed, Serial Range: 228934-C5091

1шт.

2

87310379

BRAKE LINE

Feed, Incl 16 (Qty 2), Start Serial: D5091

1шт.

3

82013031

CABLE TIE,193mm L

CABLE STRAP

1шт.

4

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

11/16"-16; M14 x 1.5

2шт.

5

87301553

BRAKE LINE

To RH Brake

1шт.

6

87301552

BRAKE LINE

To LH Brake

1шт.

7

82038909

HOSE CLIP

2шт.

8

81863753

CLIP

2шт.

9

82035645

CLIP,8mm ID

F/ 8 mm Pipe

2шт.

10

10516674

LOCK WASHER,M8

4шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

82029696

BRAKE LINE

, Serial Range: -228933

1шт.

13

82029691

, Serial Range: -228933

1шт.

14

82012717

HOSE CLAMP,11 x 17mm

, Serial Range: -228933

1шт.

15

82037647

1шт.

16

87310384

END FITTING

2шт.
