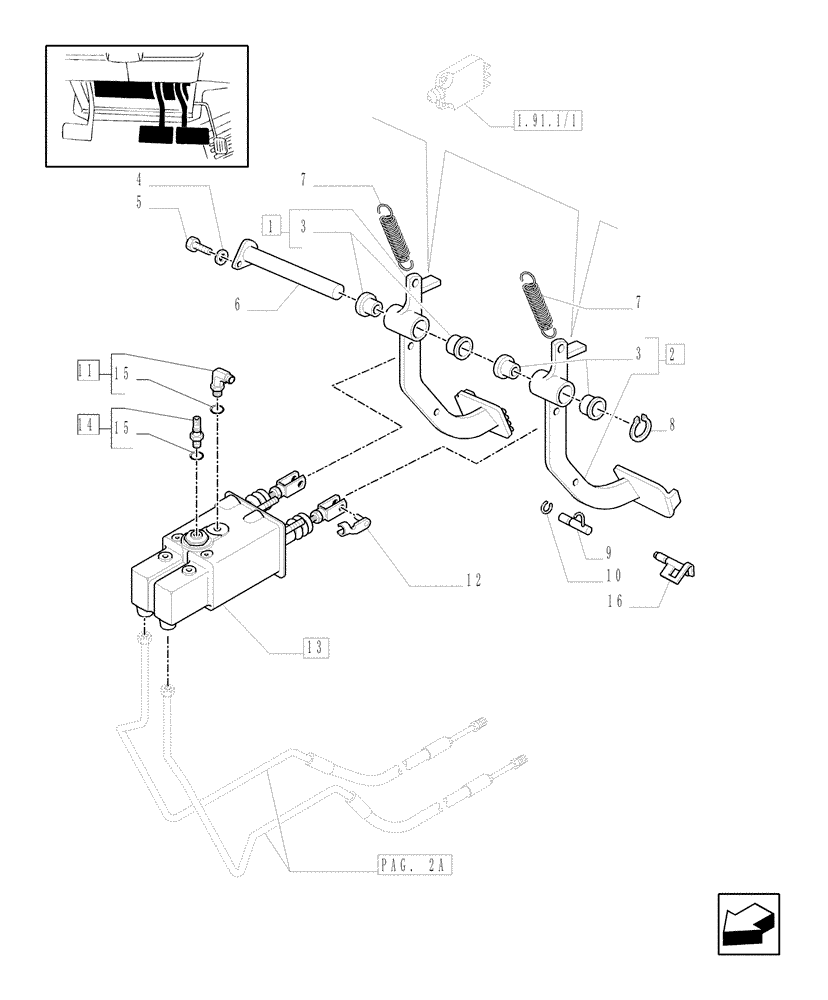

Запчасти Case IH MXM190 (1.95.0/01[01A]) - BRAKE PEDALS - D4879 (10) - OPERATORS PLATFORM/CAB

1

82036048

PEDAL

RH

1шт.

2

82036051

PEDAL

LH

1шт.

3

5155548

BUSHING,25mm ID x 31.05mm OD x 32mm L

4шт.

4

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

6

82030041

PIN,25mm OD x 153mm L

1шт.

7

5153180

SPRING,21mm OD x 84mm L

2шт.

8

87790533

SNAP RING

1шт.

9

82036476

PIN

, Serial Range: -C5133

1шт.

10

11088171

SNAP RING,M11

1шт.

11

5158418

ELBOW

Incl. 15

1шт.

12

87316560

PIN,10mm OD x 23mm L

2шт.

13

82037485

MASTER CYLINDER

1шт.

13

84530032R

REMAN-MASTER CYLINDE

Must Also Order Service Kit 1931613 When Replacing New PN 82037485

1шт.

13

84530032C

CORE-MASTER CYLINDER

Return Number

1шт.

14

82029114

FITTING,M16 x 1.5 x 51mm L

Incl. 15

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

16

87325895

PIN

, Start Serial: D5133

1шт.
