(1.93.3/ B[01]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN

Запчасти Case IH MXM190 (1.93.3/ B[01]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

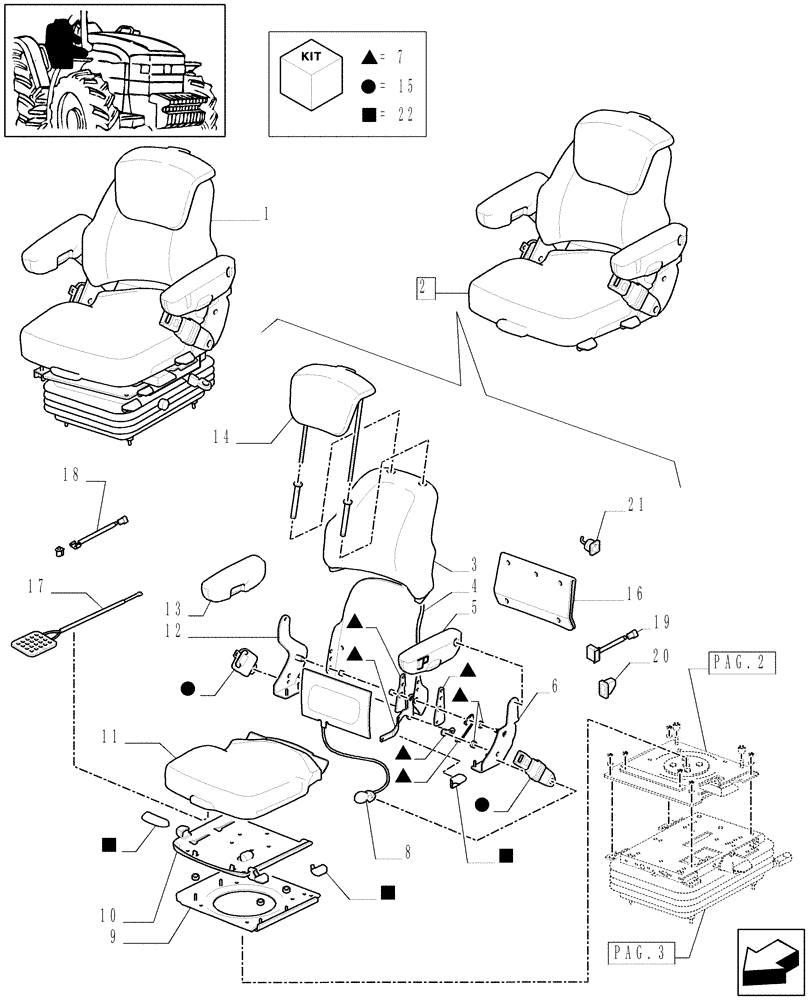

Схема запчастей Case IH MXM190 - (1.93.3/ B[01]) - DELUXE AIR SEAT WITH REELING SEAT BELT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
18
8
14
16
7
11
21
22
15
12
pag.3
pag.2
22
7
9
19
17
7
15
10
5
13
1
22
6
15
2
20
7
3
22
7
4
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82027643

DRIVER SEAT

Assy, Complete

1шт.

2

82030823

SEAT

Top Assy, W/Armrest

1шт.

3

82030782

SEAT BACK

Back

1шт.

4

82020834

KIT

Back Pan

1шт.

5

82020837

ARMREST

LH

1шт.

6

82020804

BRACKET

LH Armrest

1шт.

7

82020808

KIT

Recliner

1шт.

8

82030802

SERVICE KIT

Lumbar

1шт.

9

82020836

KIT

Seat Pan

1шт.

10

82020828

KIT

Cushion Extension

1шт.

11

82039400

SEAT CUSHION

, Serial Range: -C5141

1шт.

11

87308597

SEAT CUSHION

, Start Serial: D5141

1шт.

12

82020806

BRACKET

RH Armrest

1шт.

13

82020807

ARMREST

RH

1шт.

14

82030825

SEAT HEADREST

Upper

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

82020813

KIT

Operator Presence Switch, Serial Range: -C5141

1шт.

18

87308594

SERVICE KIT

Operator Presence, Start Serial: D5141

1шт.

19

87308603

SWITCH

Height Control, Serial Range: -C5141

1шт.

20

87308605

SWITCH

Height Control, Start Serial: D5141

1шт.

21

87308609

PREHEATING SWITCH

Heater

1шт.

22

87308611

SERVICE KIT

1шт.
