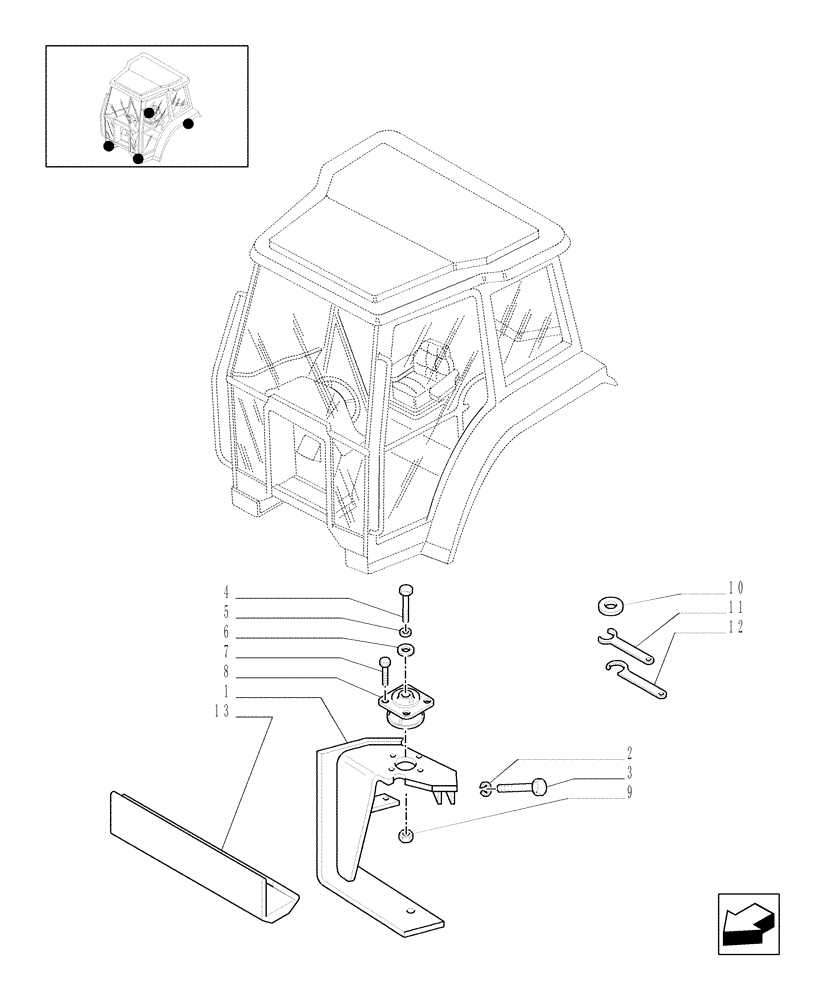

Запчасти Case IH MXM190 (1.92.6/01[01]) - CAB SUPPORTS (10) - OPERATORS PLATFORM/CAB

1

82025414

SUPPORT

LH

1шт.

1

82025416

SUPPORT

RH

1шт.

2

10517174

LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk

8шт.

3

16214621

SCREW,Hex, M14 x 1.5 x 50mm, Cl 8.8

8шт.

4

80088007

SCREW

BOLT, HH, 3/4"-10 x 4-1/2", G5

2шт.

4

89602203

SCREW

BOLT, HH, 3/4"-10 x 5, G8

4шт.

5

80087381

WASHER

SAE, 3/4"

2шт.

6

82021079

SPACER,20mm ID x 120mm OD x 11mm L

20 x 120 x 11 mm

2шт.

7

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

8шт.

8

82021655

ISOLATOR,84mm OD x 74mm L

2шт.

8

87314164

NUT

3/4"-10, G8

4шт.

9

80280375

LOCK NUT

3/4"-10, GC

2шт.

10

82030853

WASHER

4шт.

11

82035160

SPECIAL WRENCH

1шт.

12

82034842

SPECIAL WRENCH

1шт.

13

87316325

MOLDING

1шт.
