Запчасти Case IH MXM190 (1.91.5[03]) - REAR WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB

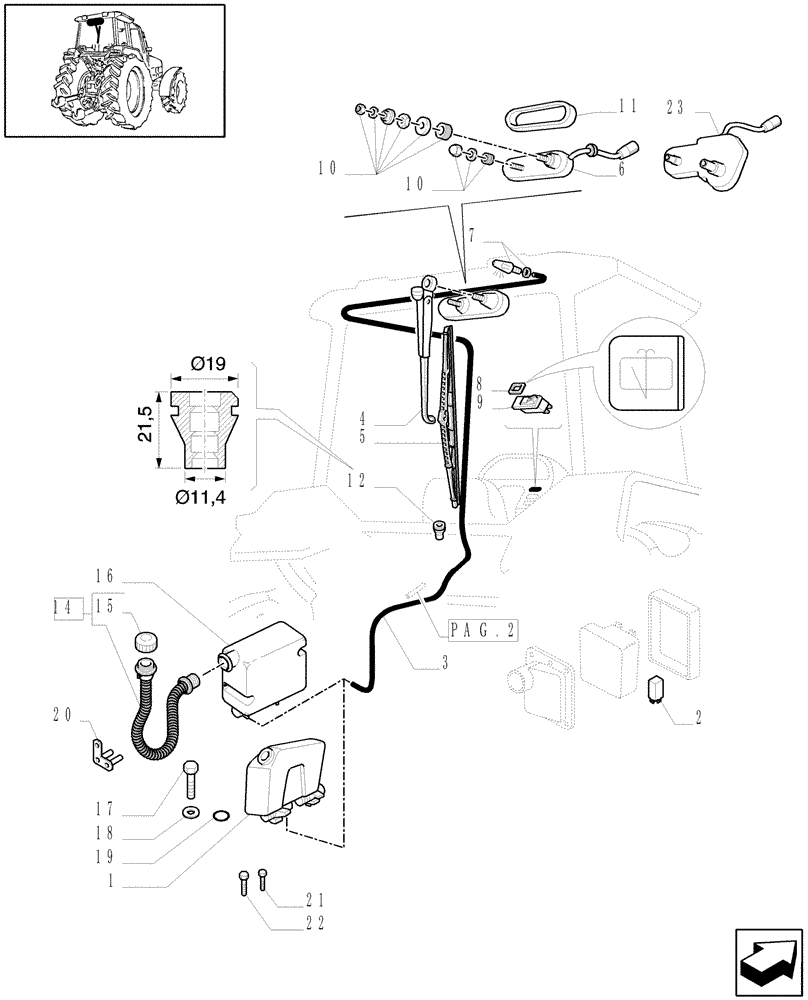

Схема запчастей Case IH MXM190 - (1.91.5[03]) - REAR WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB
7
1
g
1
3
8
0
1
2
5
2
1
1
23
9
1
1
1
1
4
2
0
1
1
7
1
1
4
2
9
6
2
pa
8
.
6
0
2
2
5

Артикул

Название

Примечание

Количество

1

5155411

RESERVOIR, WINDSHIEL

Incl. 13, MXM120, MXM130, MXM140, MXM155, Serial Range: -C4908

1шт.

2 pumps and grommets are included

1шт.

1

82016434

RESERVOIR, WINDSHIEL

Includes 2 Pumps, Serial Range: -C4908

1шт.

Only for Cab w/Suspension (Equip. 635)

1шт.

2

82011381

MODULE

1шт.

3

82014060

HOSE,101.60 mm ID x 3700.00 mm

1шт.

4

82001912

WIPER ARM,Single, 385mm L

1шт.

5

82003345

WIPER BLADE,500mm L

1шт.

6

82009353

WIPER MOTOR,12V

(10, 11), Serial Range: -C5264

1шт.

7

82008335

NOZZLE

1шт.

8

5157932

DECAL

1шт.

9

5150956

ROCKER SWITCH

Windshield Washer, Rear

1шт.

10

9967810

KIT

Wiper Arm Repair

1шт.

11

9969365

COVER

1шт.

12

82012309

GROMMET,M6 x 19 x 15

1шт.

13

9972147

PLUG

1шт.

14

82036914

NECK FILLER

L=468, Start Serial: D4908

1шт.

15

82036769

FILLER CAP

, Start Serial: D4908

1шт.

16

82036768

RESERVOIR, WINDSHIEL

, Start Serial: D4908

1шт.

17

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

, Start Serial: D4908

4шт.

18

17094714

LOCK WASHER,M6 x 13

, Start Serial: D4908

4шт.

19

14454480

O-RING,1.301" ID x 0.07" Width

, Start Serial: D4908

2шт.

20

82036794

BRACKET

, Start Serial: D4908

1шт.

21

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

, Start Serial: D4908

2шт.

22

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

, Start Serial: D4908

2шт.

23

87380358

WIPER MOTOR

, Start Serial: D5264

1шт.

Выбрано товаров: 26
