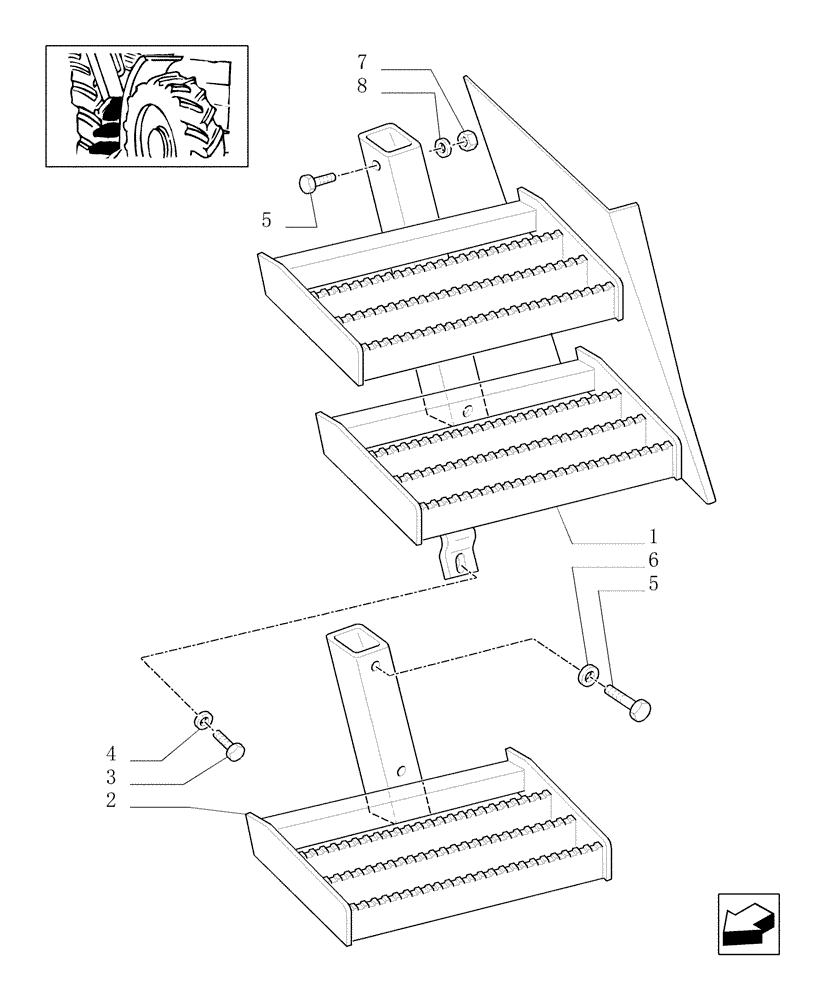

Запчасти Case IH MXM190 (1.90.2/01[01]) - FOOT STEP - C5406 (10) - OPERATORS PLATFORM/CAB

1

82025821

STEP

LH

1шт.

1

82025823

STEP

RH

1шт.

2

82018971

STEP

2шт.

3

82010490

BOLT,M12 x 1.75 x 40mm

M12 x 1.75 x 40

2шт.

4

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

5

11113821

SCREW,Hex, M12 x 80mm, Cl 8.8

2шт.

5

11113831

SCREW,Hex, M12 x 80mm, Cl 10.9

2шт.

6

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

2шт.

7

80100038

NUT

Prevailing Torque, CL 8, M12 x 1.75

2шт.

8

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.
