Запчасти Case IH MXM190 (0.06.0[01]) - CYLINDER HEAD & RELATED PARTS (01) - ENGINE

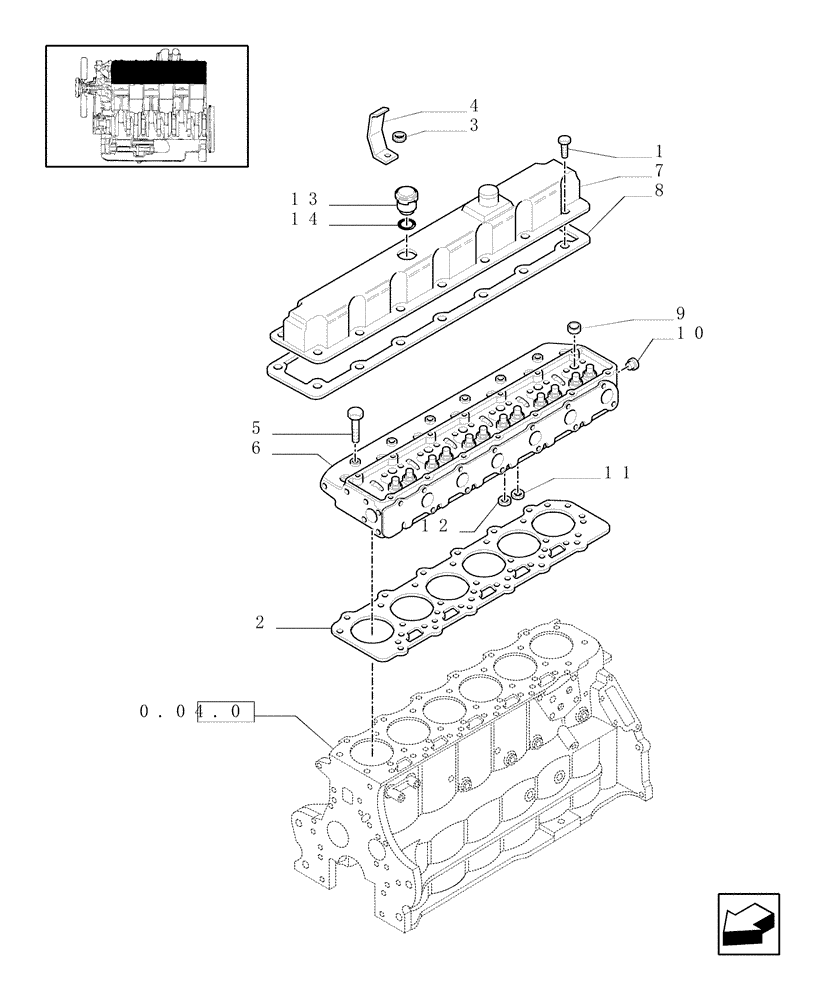

Схема запчастей Case IH MXM190 - (0.06.0[01]) - CYLINDER HEAD & RELATED PARTS (01) - ENGINE
9
8
11
13
1
7
10
0.04.0
12
2
14
4
6
3
5

Артикул

Название

Примечание

Количество

1

83949109

BOLT,Flng, 5/16" x 5/8", Gr 5

Flg Hd, 5/16"-18 x 5/8"

14шт.

2

87801753

CYLINDER HEAD GASKET,1.32mm Thk

MXM140, MXM155, MXM175, MXM190

1шт.

2

87801752

CYLINDER HEAD GASKET,1.32mm Thk

MXM120, MXM130

1шт.

3

83925582

WASHER,7.94mm ID x 16mm OD x 1.52mm Thk

11/32"

3шт.

4

82007695

CLIP

3шт.

5

87802206

BOLT,Cyl Hd, 9/16" - 12 x 130mm

19шт.

6

87802943

CYLINDER HEAD

MXM120, MXM130, MXM140, MXM155

1шт.

6

87802943R

REMAN-CYLINDER HEAD

MXM120, MXM130, MXM140, MXM155. Complete With Valves

1шт.

6

87802943C

CORE-CYLINDER HEAD

Return Part Number

1шт.

6

87802525

CYLINDER HEAD

MXM175, MXM190

1шт.

6

87802525R

REMAN-CYLINDER HEAD

MXM175, MXM190

1шт.

6

87802525C

CORE-CYLINDER HEAD

Return Number

1шт.

7

87802611

VALVE COVER

1шт.

8

83976376

GASKET,4.47mm Thk

1шт.

9

83957021

PLUG

1.13"

11шт.

9

83957022

PLUG

1.18"

1шт.

10

83957025

PLUG

1.75"

1шт.

10

83957026

PLUG

1.81"

1шт.

11

87803449

VALVE SEAT

Standard, Intake, MXM120, MXM130, MXM140, MXM155

6шт.

11

81876763

INSERT

-0.254/Intake, MXM120, MXM130, MXM140, MXM155

1шт.

11

81876768

INSERT

-0.508/Intake, MXM120, MXM130, MXM140, MXM155

1шт.

11

87801981

INSERT

Standard Intake, MXM175, MXM190

6шт.

11

87802015

INSERT

0.25, Intake, MXM175, MXM190

1шт.

11

87802016

INSERT

0.51, Intake, MXM175, MXM190

1шт.

12

81865194

INSERT

Standard, Exhaust

6шт.

12

81865195

INSERT

-0.254/Exhaust

1шт.

12

81865196

INSERT

0.508/Exhaust

1шт.

13

87802638

VALVE PRESSURE RELIE

1шт.

14

83958239

GROMMET

1шт.

Выбрано товаров: 29
