(1.89.6/09[02]) - (VAR.900) HYDRAULIC ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - TIE-ROD AND CYLINDER

Запчасти Case IH MXM190 (1.89.6/09[02]) - (VAR.900) HYDRAULIC ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - TIE-ROD AND CYLINDER (09) - IMPLEMENT LIFT

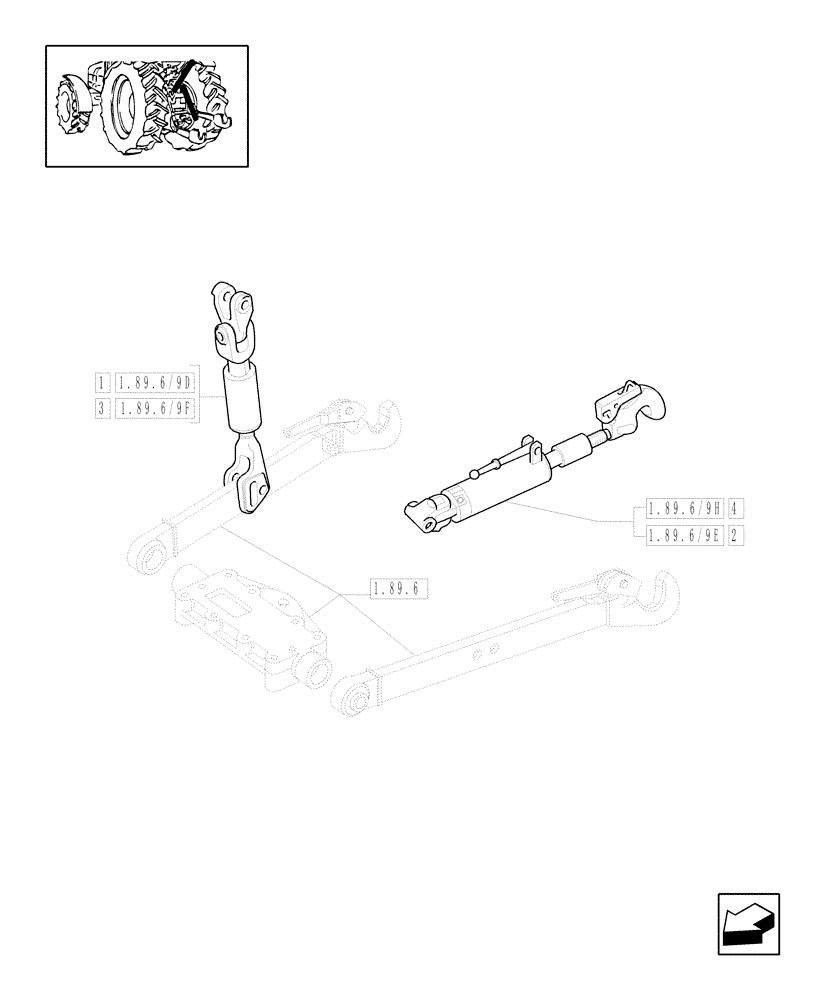

Схема запчастей Case IH MXM190 - (1.89.6/09[02]) - (VAR.900) HYDRAULIC ADJUSTMENT OF RIGHT TIE-ROD FOR CLOSED CCLS CENTRE - TIE-ROD AND CYLINDER (09) - IMPLEMENT LIFT
3
1.89.6
1.89.6/9d
1.89.6/9f
1.89.6/9h
1.89.6/9e
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188141

LIFT LINK

Hydraulic, Serial Range: -230152

1шт.

2

5188143

UPPER LINK

Hydraulic, Serial Range: -228934

1шт.

3

47133995

LIFT LINK

, Start Serial: 230153

1шт.

4

82032582

UPPER LINK

, Start Serial: 228935

1шт.

Выбрано товаров: 4
