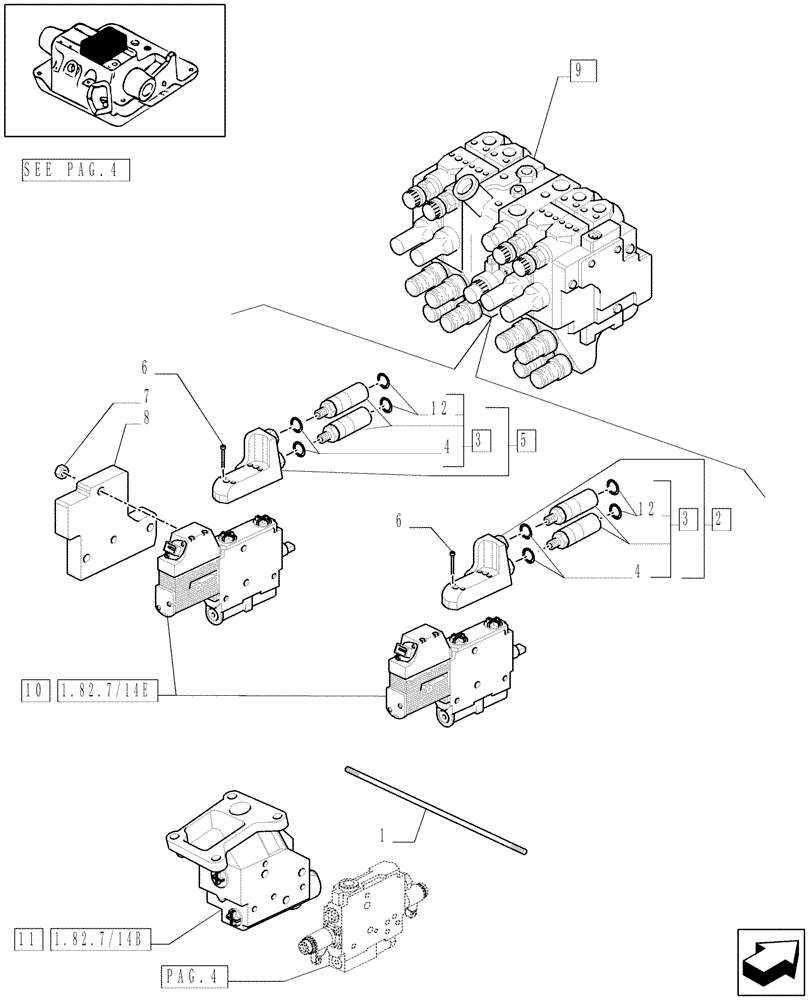

Запчасти Case IH MXM190 (1.82.7/15[03]) - (VAR.718) BATTERY WITH FOUR CONTROL VALVES WITH ELECTRONIC CONTROL - D5504 (07) - HYDRAULIC SYSTEM

1

5195170

BOLT

3шт.

2

87381983

HYDRAULIC MANIFOLD

is faster 4bm12, Assy

1шт.

3

87381944

COUPLING, QUICK, FEM

Assy

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

5

87381984

HYDRAULIC MANIFOLD

is faster 4bm13, Assy

1шт.

6

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

8шт.

7

5195169

NUT,M8

3шт.

8

5190710

PLATE

1шт.

9

87553797

CONTROL VALVE

1шт.

10

87531906

HYD VALVE SECTION

2шт.

84125295R

REMAN-HYD VALVE

MXM175, MXM190 all (6/02-) REMAN FOR NEW P/N 87531906

2шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

11

47123177

BODY

1шт.

12

47134601

SEAL

4шт.
