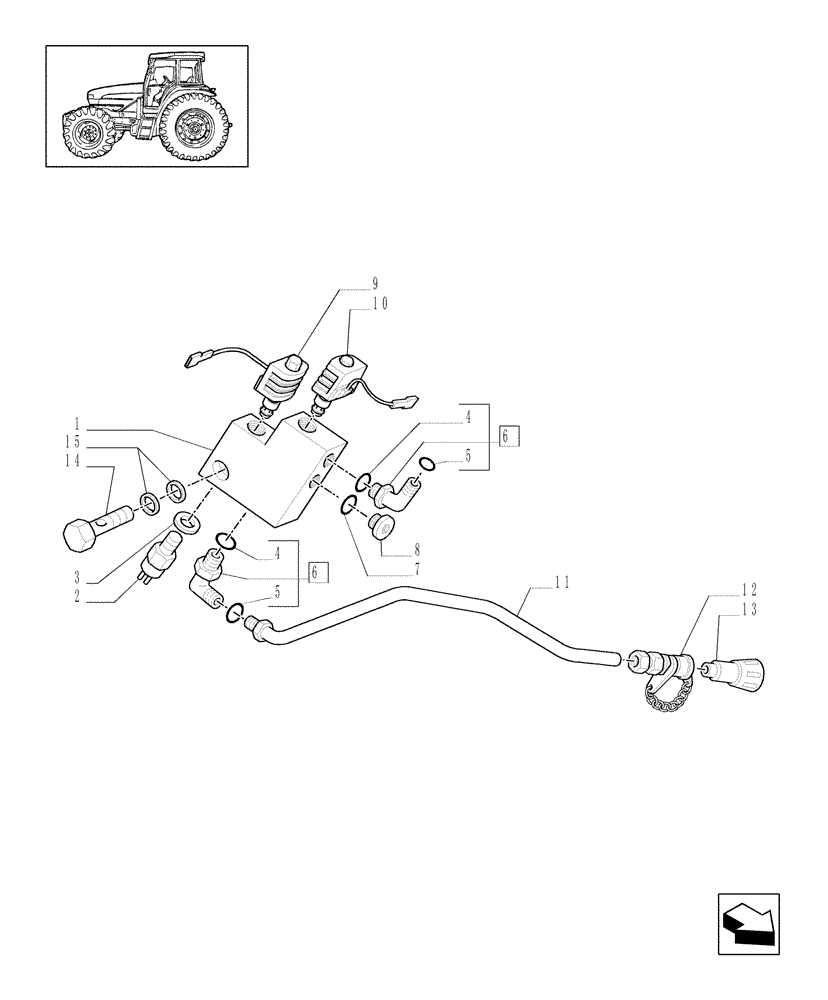

Запчасти Case IH MXM190 (1.82.713/06[03]) - (VAR.418/1) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - ITALY (07) - HYDRAULIC SYSTEM

1

5196175

BRAKE VALVE

Incl. 2, 3, 4, 8, 9, 10

1шт.

2

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

3

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

2шт.

6

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

M18 x 1.5, 13/16"-16NN 2A

2шт.

7

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

8

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

9

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

10

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

11

47123576

HYD TUBE

1шт.

12

44015354

QUICK MALE COUPLING

1шт.

13

62775076

QUICK MALE COUPLING

1шт.

14

5197769

BANJO BOLT,M18 x 1.5 x 49mm

M18 x 1.5 x 49

1шт.

15

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.
