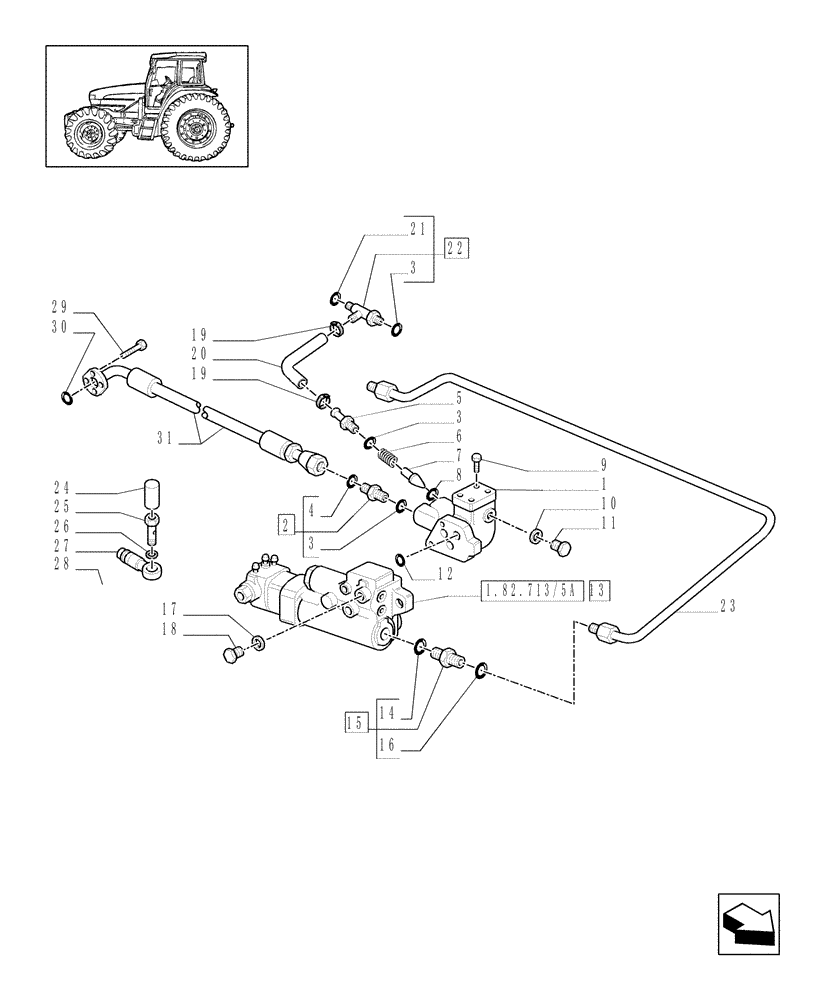

Запчасти Case IH MXM190 (1.82.713/06[01]) - (VAR.418/1) TRAILER BRAKE VALVE FOR LOAD SENSING CLOSED CENTRE (CCLS) - ITALY (07) - HYDRAULIC SYSTEM

1

5198976

BLOCK

Incl. 2, 5, 6, 7, 8, 10, 11

1шт.

2

5185041

HYD CONNECTOR,1"3/16-12 ORFS x M22 x 1.5 ORB

M22 x 1.5, 13/16"-12UN 2A

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

4

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

5

5198831

HYD CONNECTOR

1шт.

6

5157487

SPRING,9.5mm OD x 44mm L

1шт.

7

5187827

GUIDE PIN

1шт.

8

5184567

RING

1шт.

9

11108021

BOLT,Hex, M10 x 90mm, Cl 8.8

4шт.

10

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

11

82029539

PRESSURE SWITCH

1шт.

12

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

13

47126820

BRAKE VALVE

1шт.

14

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

15

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 x 1.5, 13/16"-16UN 2A

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

17

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

18

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

19

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

20

5198833

HOSE,12mm ID x 165mm L

1шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

22

5198834

TEE

M22 x 1.5, 13/16"-16UN 2A

1шт.

23

47123574

BRAKE LINE

1шт.

24

44995074

PLUG,M8 x 1.0

1шт.

25

5121685

BANJO BOLT,M12 x 1.5 x 23mm

M12 x 1

1шт.

26

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

27

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

28

82030788

SHIELD

1шт.

29

14305831

HEX SOC SCREW,M6 x 40mm, Cl 10.9

4шт.

30

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

31

47124580

HYDRAULIC HOSE

1шт.
