Запчасти Case IH MXM190 (1.80.7/01[03]) - PTO, CLUTCH - (2WD) - C5497 (07) - HYDRAULIC SYSTEM

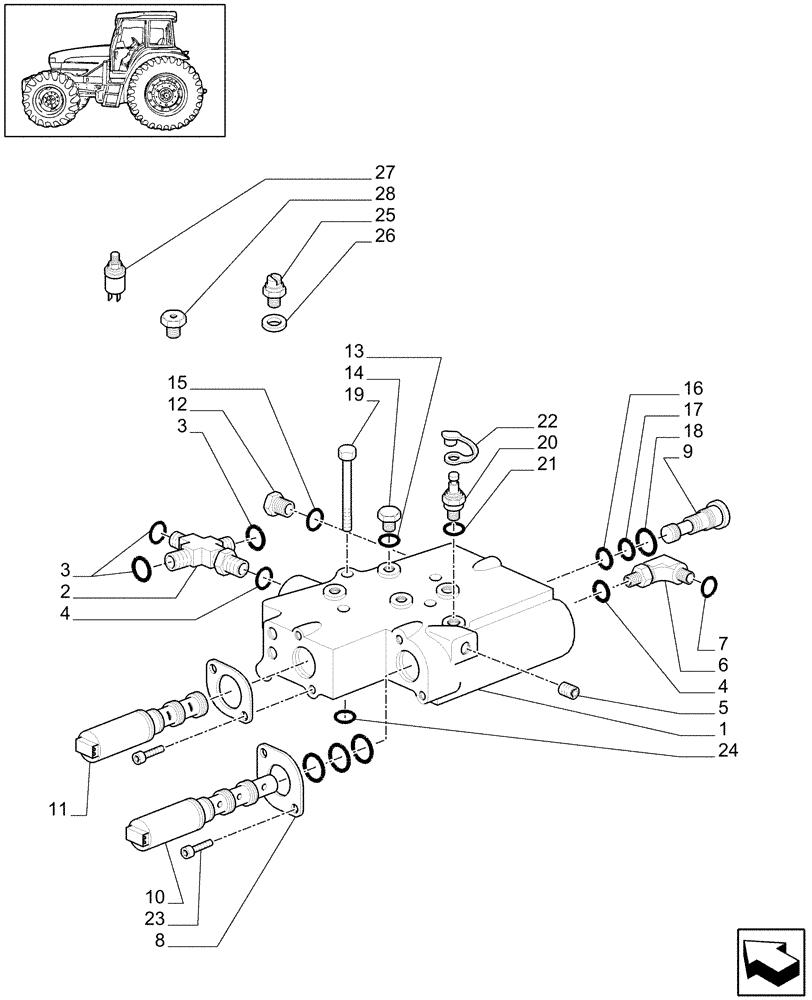

Схема запчастей Case IH MXM190 - (1.80.7/01[03]) - PTO, CLUTCH - (2WD) - C5497 (07) - HYDRAULIC SYSTEM
21
9
16
25
28
15
2
20
8
14
22
17
7
18
1
3
3
10
6
5
27
26
4
24
12
4
19
13
23
11

Артикул

Название

Примечание

Количество

1

5196078

CONTROL VALVE

Assy

1шт.

2

5187063

HYD CONNECTOR

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

5шт.

6

5194068

ELBOW

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

5194826

BRACKET

4шт.

9

5195316

PLUG

1шт.

10

5196873

SOLENOID VALVE

1шт.

For PTO

1шт.

11

5196874

SOLENOID VALVE

2шт.

For Brake and Diff.

1шт.

12

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

13

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

4шт.

14

11903011

PLUG,M10 x 1 x 11, Cl5.8

4шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

16

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

17

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

18

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

19

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

20

5185423

COUPLING

1шт.

21

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

22

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

23

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

24

14457081

O-RING,12.37mm ID x 2.62mm

7шт.

25

82031395

SWITCH ASSY

Trans. Oil

1шт.

26

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

27

82008236

SWITCH ASSY

Trans. Oil, 51 mm L.

1шт.

28

5195455

HYD CONNECTOR

1шт.

Выбрано товаров: 30
