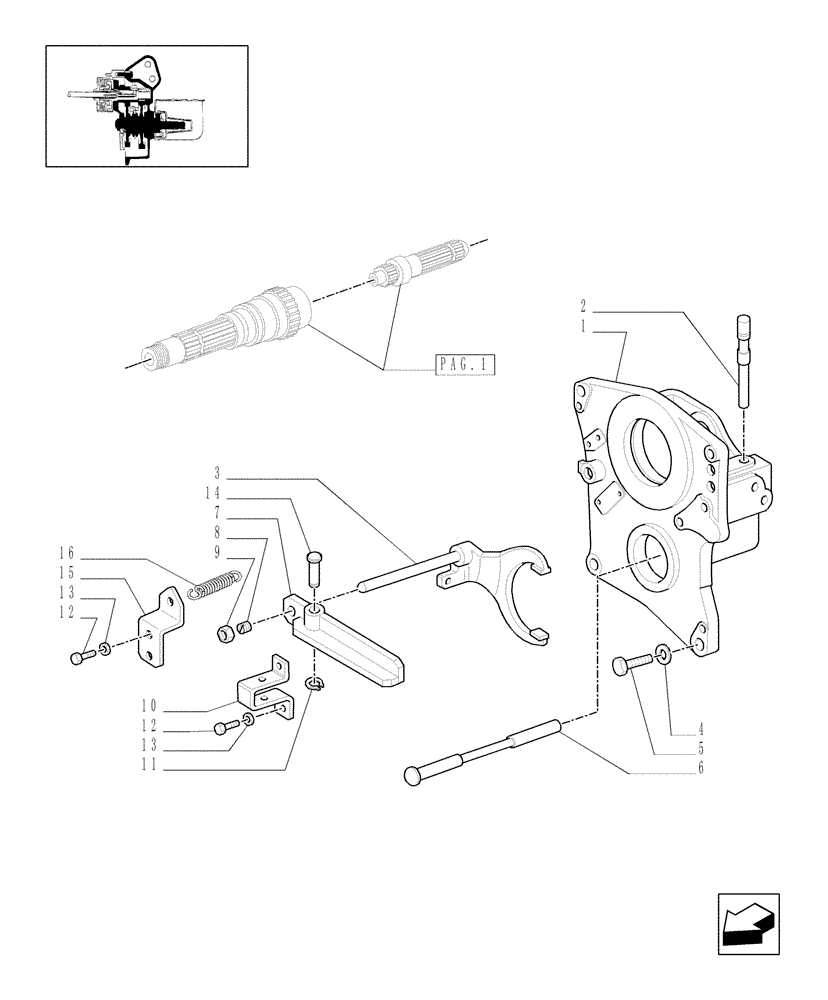

Запчасти Case IH MXM190 (1.80.1/03[02]) - (VAR.809/1) PTO 540/1000 RPM - SUPPORT AND FORK (07) - HYDRAULIC SYSTEM

1

47127956

SUPPORT

, Serial Range: -C4943

1шт.

1

47132140

SUPPORT

Incl. 2, Start Serial: D4943

1шт.

2

82990908

TEE

D = 11.986 mm, Serial Range: -C4943

1шт.

2

82990909

TEE

D = 11.991 mm, Serial Range: -C4943

1шт.

2

82990910

TEE

D = 11.996 mm, Serial Range: -C4943

1шт.

2

82990911

TEE

D = 12.000 mm, Serial Range: -C4943

1шт.

2

47128616

VALVE

, Start Serial: D4943

1шт.

3

5182695

YOKE

1шт.

4

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

5

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

, Serial Range: -C4943

4шт.

5

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

, Start Serial: D4943

4шт.

6

5196863

PIN

1шт.

7

5171261

LEVER

1шт.

8

5171363

PIN

1шт.

9

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

10

5179750

SUPPORT

1шт.

11

11065976

CIRCLIP,M10, Ext

1шт.

12

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

4шт.

13

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

14

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

15

87345949

SUPPORT

1шт.

16

4983677

SPRING

1шт.
