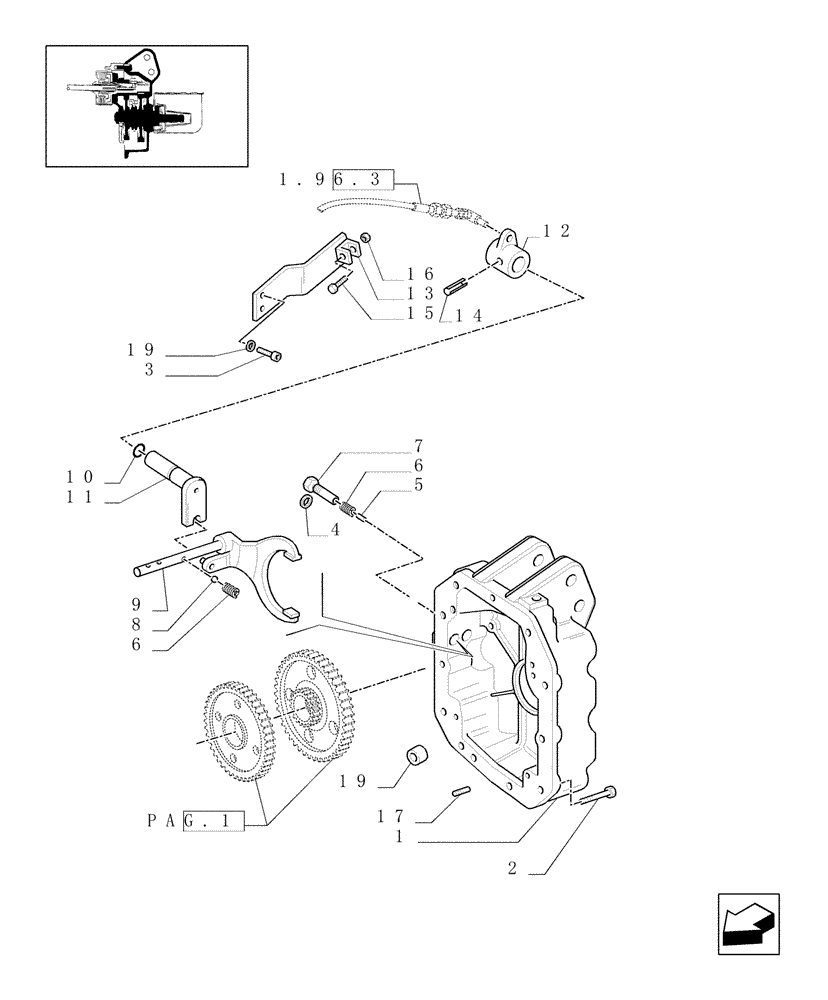

Запчасти Case IH MXM190 (1.80.1/01[02]) - POWER TAKE-OFF 750/1000 RPM (07) - HYDRAULIC SYSTEM

1

5196862

HOUSING

Incl. 17, Serial Range: -C4943

1шт.

1

47132057

HOUSING

Incl. 19, Serial Range: D4943-ACM252702

1шт.

1

87358975

HOUSING

, Start Serial: ACM252703

1шт.

2

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

14шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

5159011

PIN,10mm OD x 20mm Thk

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

2шт.

7

5182673

CASE

1шт.

8

20063390

BALL,8.73mm OD

1шт.

9

5182677

SHIFTER FORK

1шт.

10

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

11

5182672

PIN

1шт.

12

5182658

LEVER

1шт.

13

87339200

BRACKET

, Start Serial: ACM269446

1шт.

13

5199006

BRACKET

, Serial Range: -ACM269445

1шт.

14

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

15

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

1шт.

16

12574211

NUT,M6 x 1, Cl 8

1шт.

17

10839710

DOWEL,M10 x 15.00mm

, Serial Range: -C4943

2шт.

18

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

19

44908048

BUSHING,16mm OD x 14mm L

, Start Serial: D4943

2шт.
