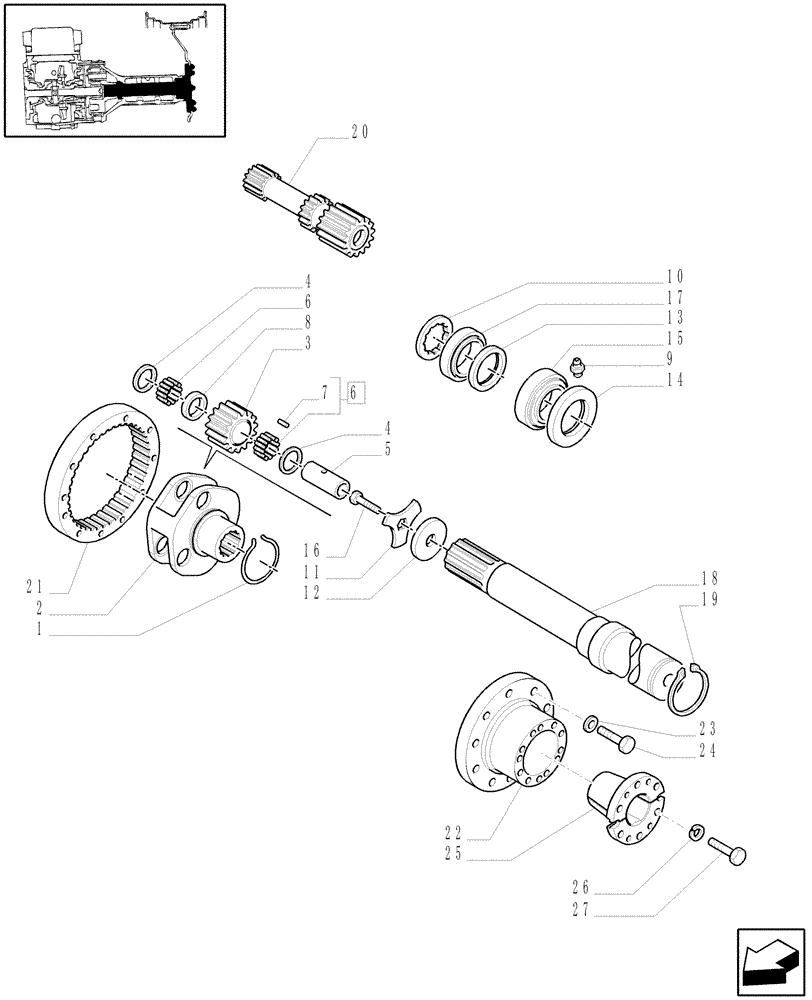

Запчасти Case IH MXM190 (1.48.1/01) - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87396411

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

5124797

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

88 x 110 x 12

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

5188472

BALL BEARING,95mm ID x 145mm OD x 39mm W

2шт.

16

15992537

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

24903500

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

85 x 130 x 29

2шт.

18

5198565

SHAFT

98"

2шт.

18

5199221

MAIN SHAFT

119" (VAR.181)

2шт.

Bar axle for steel wheels and cast wheels

1шт.

19

11082176

SNAP RING,M105, Ext

M105

2шт.

19

11071576

SNAP RING,M95, Ext

(VAR.181)

2шт.

Bar axle for steel wheels and cast wheels

1шт.

20

5195094

SHAFT

2шт.

21

5136126

RING GEAR

, Serial Range: -C5947

2шт.

21

87602924

RING GEAR

, Start Serial: D5947

2шт.

22

47126431

HUB

2шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

24

15204324

SCREW,Hex, M22 x 2.5 x 80mm, Cl 8.8

12шт.

25

87567092

WEDGE

, Serial Range: -C5578

2шт.

25

5198567

WEDGE

(VAR.181)

2шт.

Bar axle for cast wheels

1шт.

25

87623561

WEDGE

, Serial Range: D5578-C5638

2шт.

25

87645102

WEDGE,Lock, Silver

, Start Serial: D5638

2шт.

26

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

12шт.

27

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.
