(1.48.0/01) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS

Запчасти Case IH MXM190 (1.48.0/01) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE

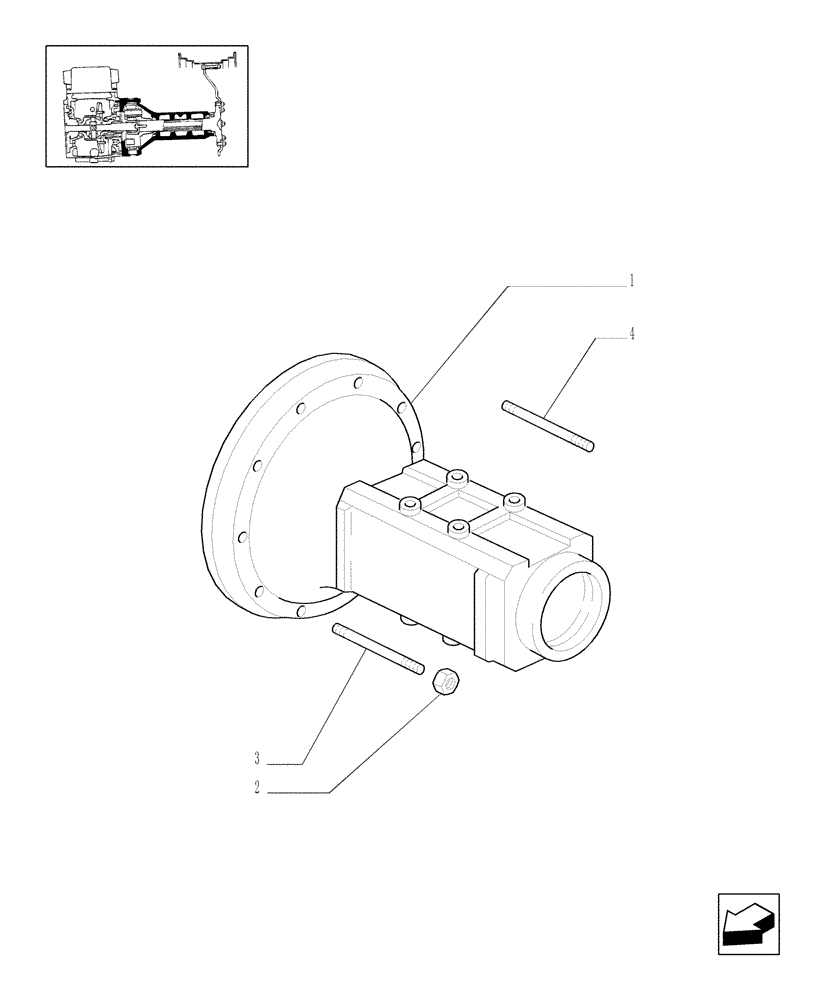

Схема запчастей Case IH MXM190 - (1.48.0/01) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47127211

FINAL DRIVE HOUSING

2шт.

2

12164121

NUT,M16 x 1.5, Cl 10

24шт.

3

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

M16 x 32 x 105

18шт.

4

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

M16 x 32 x 120

6шт.
