(1.40.7/10C) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - ARTICULATED HALF-AXLE

Запчасти Case IH MXM190 (1.40.7/10C) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING

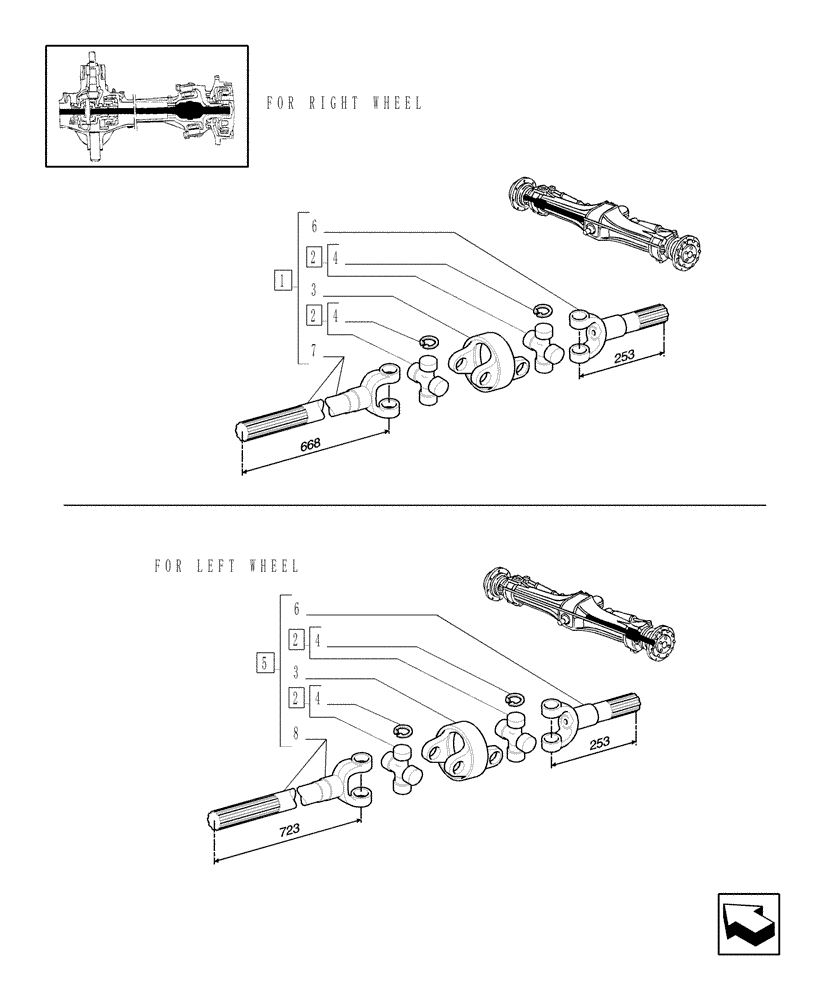

Схема запчастей Case IH MXM190 - (1.40.7/10C) - (VAR.463/1) 4WD FRONT AXLE WITH SUSPENSIONS, BRAKE, TERRALOCK, FPS - ARTICULATED HALF-AXLE (04) - FRONT AXLE & STEERING
2
7
2
6
2
1
for right wheel
for left wheel
3
2
4
8
6
3
4
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191702

AXLE-SHAFT, ARTICULA

Assy, RH

1шт.

2

5191451

SPIDER

2шт.

3

87568624

U-JOINT SPIDER

1шт.

4

5191452

LOCKING RING

8шт.

5

5191701

AXLE-SHAFT, ARTICULA

Assy, LH

1шт.

6

5192664

AXLE-SHAFT, ARTICULA

Outer, Short

1шт.

7

5192663

SHAFT

Inner, Long, RH

1шт.

8

5192662

SHAFT

Inner, Long, LH

1шт.
