(1.40.0/10C) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN

Запчасти Case IH MXM190 (1.40.0/10C) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN (04) - FRONT AXLE & STEERING

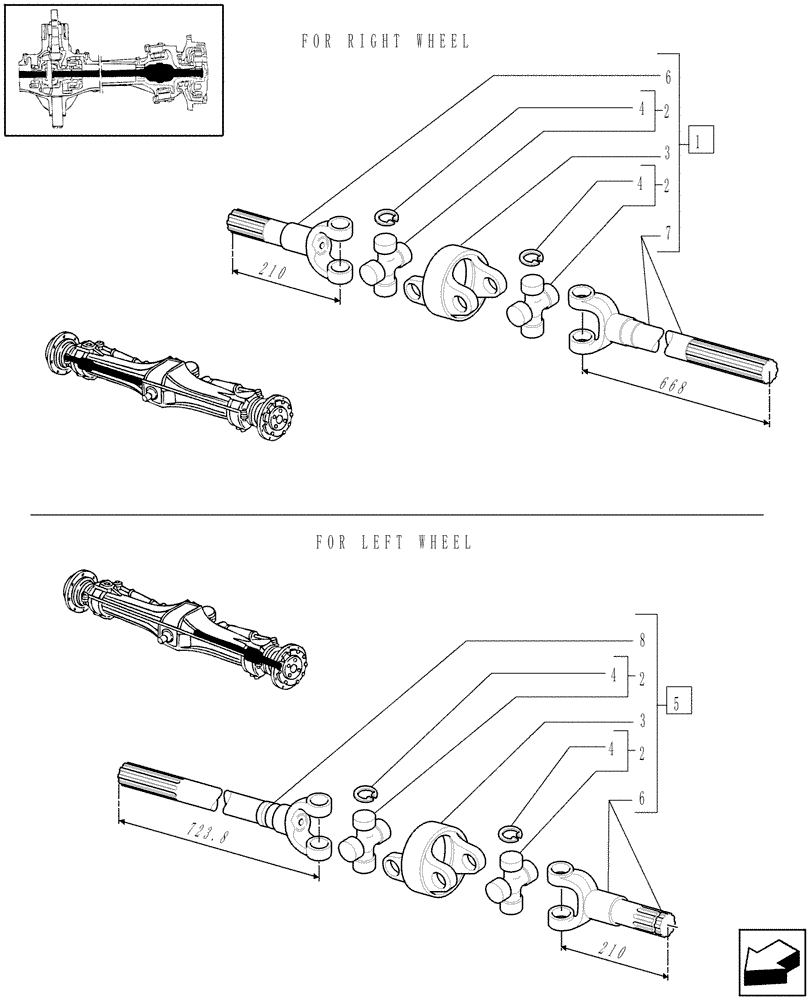

Схема запчастей Case IH MXM190 - (1.40.0/10C) - 4WD FRONT AXLE - AXLE-SHAFT ARTICULATED BREAKDOWN (04) - FRONT AXLE & STEERING
4
3
210
for right wheel
7
6
2
8
1
4
3
668
for left wheel
2
2
5
210
723.8
2
4
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191697

AXLE-SHAFT, ARTICULA

Assy, RH

1шт.

2

5191451

SPIDER

2шт.

3

87568624

U-JOINT SPIDER

1шт.

4

5191452

LOCKING RING

8шт.

5

5191696

AXLE-SHAFT, ARTICULA

Assy, LH

1шт.

6

5194144

SHAFT

Short, LH & RH

1шт.

7

5192663

SHAFT

Long, RH

1шт.

8

5192662

SHAFT

Long, LH

2шт.
