Запчасти Case IH MXM190 (1.40.0/10[03]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (04) - FRONT AXLE & STEERING

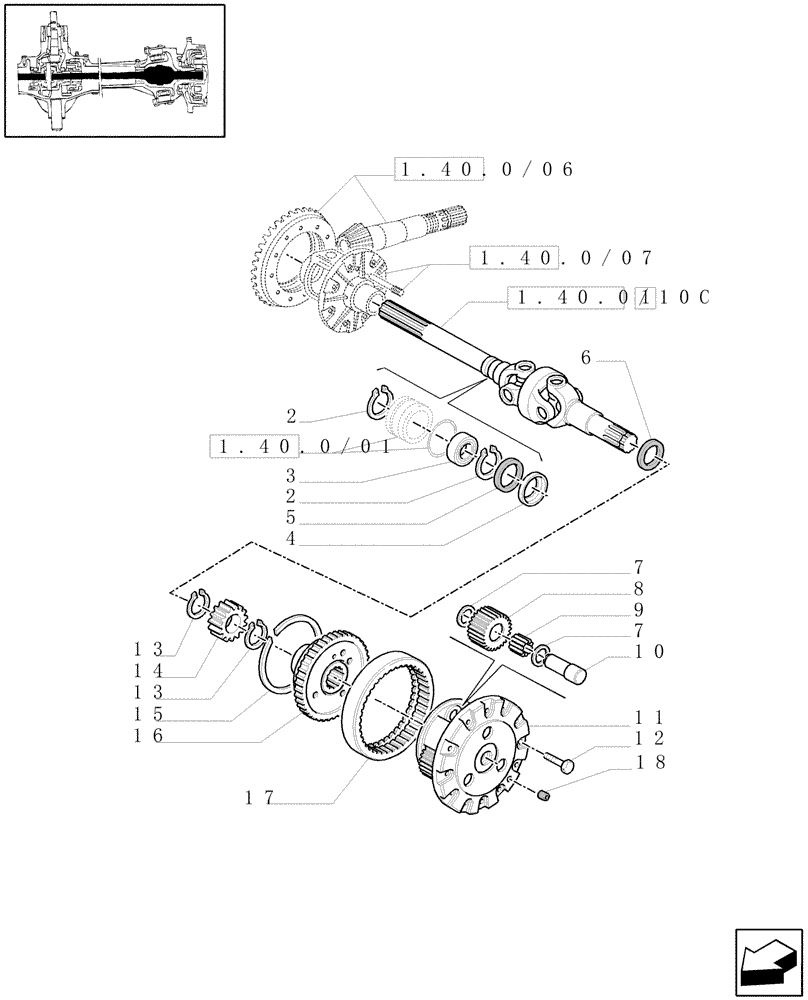

Схема запчастей Case IH MXM190 - (1.40.0/10[03]) - 4WD FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (04) - FRONT AXLE & STEERING
2
5
12
17
1.40.0/10c
1.40.0/01
1.40.0/06
1.40.0/07
3
10
4
13
18
6
13
9
7
15
16
11
1
14
8
7
2

Артикул

Название

Примечание

Количество

1

5191696

AXLE-SHAFT, ARTICULA

LH

1шт.

1

5191697

AXLE-SHAFT, ARTICULA

RH

1шт.

2

11061376

SNAP RING,M68, Int

4шт.

3

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

4

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

5

5105948

SEAL

45 x 68 x 12

2шт.

6

5183845

SEAL

2шт.

7

4998022

THRUST WASHER,32mm ID x 55mm OD x 0.8mm Thk

12шт.

8

5102132

PLANETARY GEAR

6шт.

9

5101692

NEEDLE BEARING,31.9mm ID x 41.9mm OD x 35.5mm W

31.8 x 41.9 x 35.5

6шт.

10

5181056

PIN,35mm OD x 75.5mm L

6шт.

11

5181054

CARRIER

Incl. 7, 8, 9, 10

2шт.

12

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

24шт.

13

5123651

SNAP RING,36mm, External

6шт.

14

5136819

PLANETARY GEAR

2шт.

15

4986355

CIRCLIP

2шт.

16

5141691

DISC

2шт.

17

5102130

RING GEAR

2шт.

18

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.

Выбрано товаров: 19
