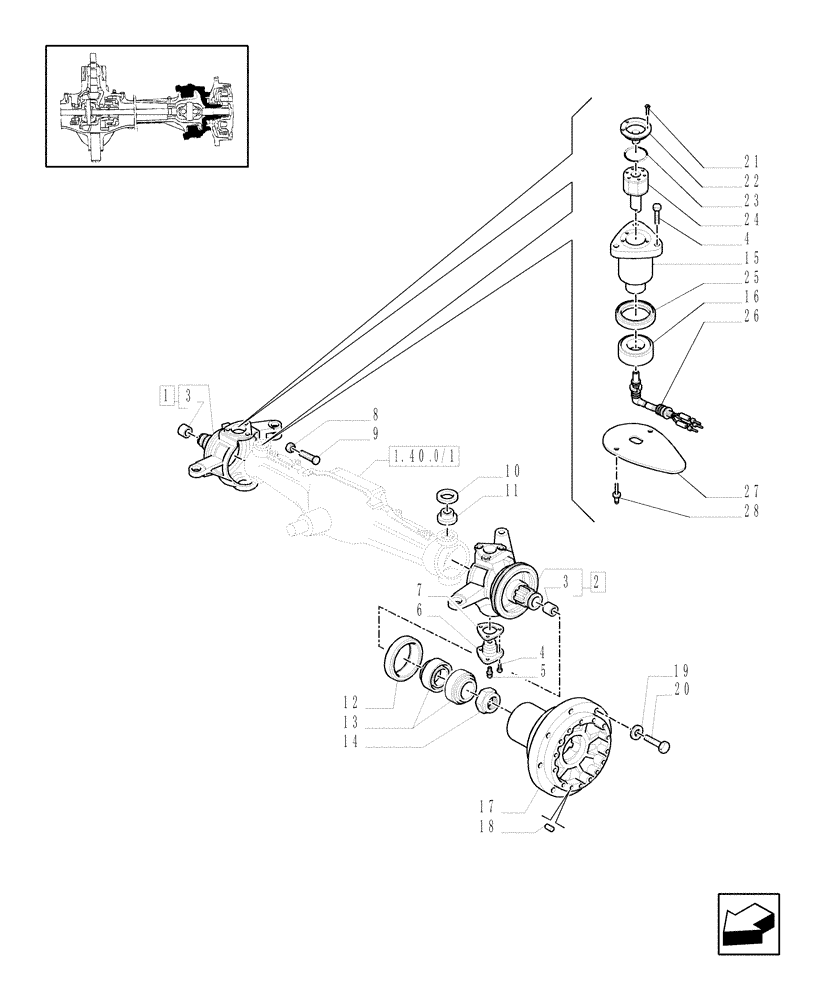

Запчасти Case IH MXM190 (1.40.0/02[03A]) - 4WD FRONT AXLE - STEERING AXLES - HUBS - D5196 (04) - FRONT AXLE & STEERING

1

5198872

STEERING KNUCKLE,RH

RH

1шт.

2

5198870

STUB AXLE/STEERING S

LH

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254431

BOLT,Hex, M14 x 1.5 x 30mm, Cl 10.9

12шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

5

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

1шт.

6

5137138

BALL STUD

BALL PIN

3шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

5179447

SCREW

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5178141

SEAL

190 x 220 x 14.5-18

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

14

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

15

87309308

BALL STUD

BALL PIN

1шт.

16

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

17

5156065

HUB

, Serial Range: -C5201

2шт.

17

87341364

HUB

, Start Serial: D5201

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

20

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

16шт.

21

10384911

SCREW,Slotted Countersunk, M5 x 12mm

M5 x 12

3шт.

22

87309292

PIN

, Serial Range: -C5731

1шт.

22

87574551

PIN

, Start Serial: D5731

1шт.

23

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

24

87303761

SENSOR

Steering, Serial Range: -C5735

1шт.

24

87612538

SENSOR

, Serial Range: D5735-C5731

1шт.

24

87627614

SENSOR

, Start Serial: D5731

1шт.

25

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

26

87303770

ELEC CONNECTOR

, Serial Range: -C5731

1шт.

26

87627624

ELEC CONNECTOR,Male

, Start Serial: D5731

1шт.

27

87315098

SHIELD

1шт.

28

14643091

RIVET

2шт.
