Запчасти Case IH MXM190 (1.33.3/01[02]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING

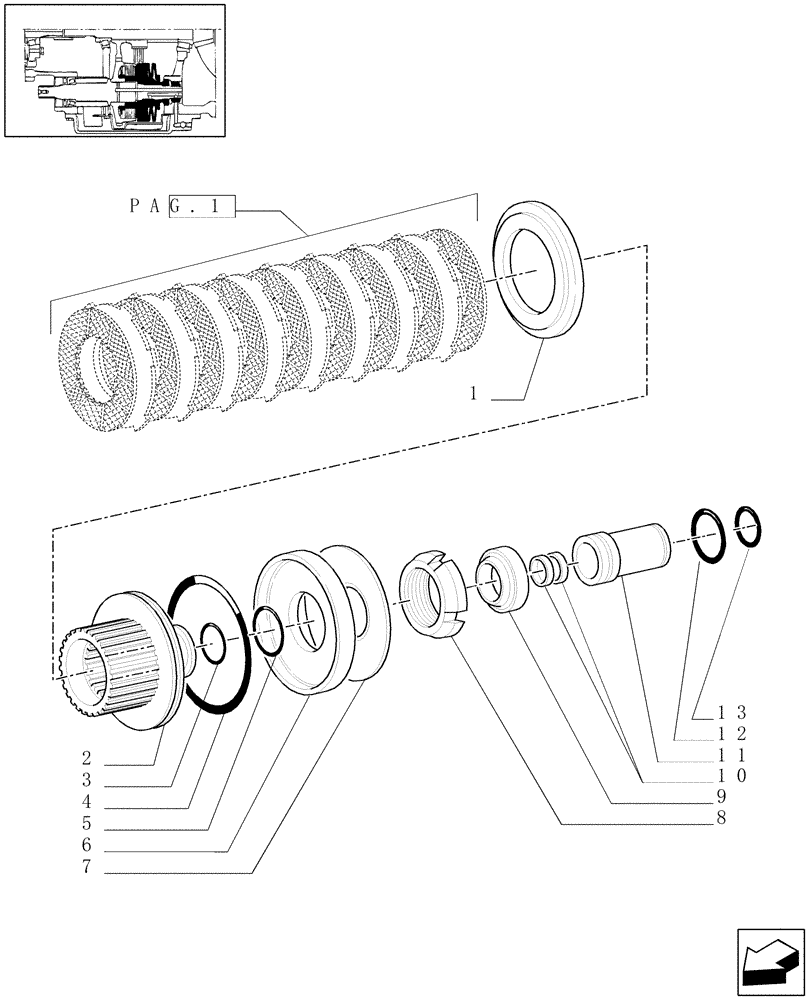

Схема запчастей Case IH MXM190 - (1.33.3/01[02]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING
9
7
6
1
8
11
10
pag.1
12
2
5
13
3
4

Артикул

Название

Примечание

Количество

1

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

2

5195122

HUB

1шт.

3

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

4

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

5

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

6

5193859

PISTON

1шт.

7

89845126

BELLEVILLE SPRING

1шт.

8

5193860

NUT,Rd, M58,1.5mm Pitch

1шт.

9

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25

1шт.

10

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

SEALRING

2шт.

11

5195345

MANIFOLD

1шт.

12

14459180

O-RING,45.69mm ID x 2.62"

1шт.

13

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

Выбрано товаров: 13
