(1.33.3/01[01]) - START HYDRAULIC CLUTCH (4WD)

Запчасти Case IH MXM190 (1.33.3/01[01]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING

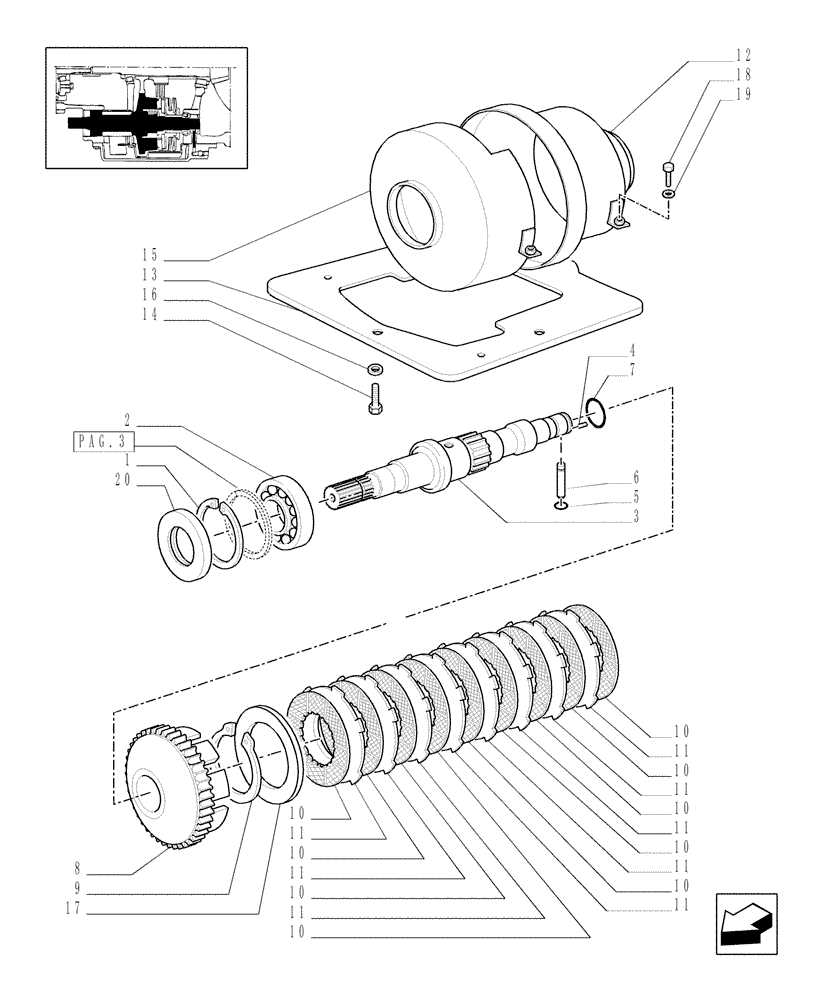

Схема запчастей Case IH MXM190 - (1.33.3/01[01]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING
3
19
10
14
11
12
18
11
10
11
11
20
17
10
pag.3
11
11
10
10
15
11
7
11
16
10
8
2
6
1
9
10
5
10
4
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

1шт.

2

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

40 x 80 x 19.75

1шт.

3

5195108

SHAFT

1шт.

4

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

5

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

(M10.82 ID x 1.78 Thk)

1шт.

6

14516210

DOWEL,M7 x 45

1шт.

7

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

8

5164773

GEAR

1шт.

9

5139462

SNAP RING,3mm Thk

1шт.

10

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

10шт.

11

5163840

DRIVE PLATE

9шт.

12

5195439

SHIELD

1шт.

13

5195444

SHIELD

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

15

5195442

SHIELD

1шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

17

47126552

CLUTCH PLATE

1шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

20

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

40 x 80 x 12

1шт.
