(1.32.8/02[07]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - (4WD)

Запчасти Case IH MXM190 (1.32.8/02[07]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - (4WD) (03) - TRANSMISSION

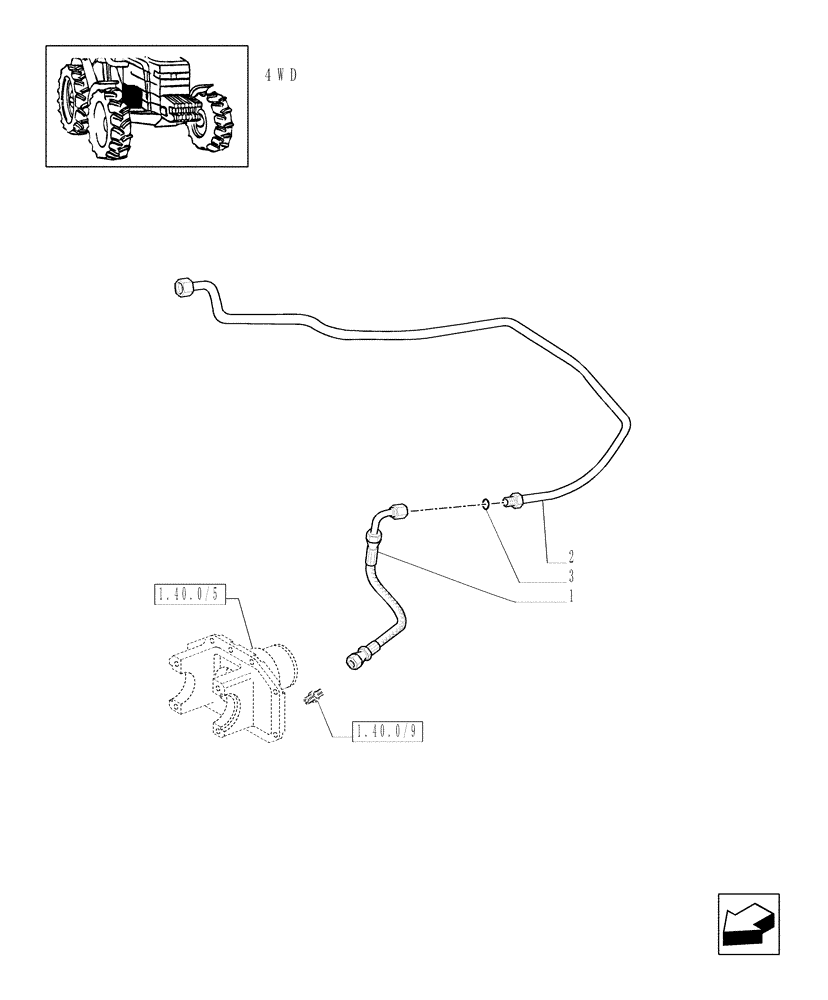

Схема запчастей Case IH MXM190 - (1.32.8/02[07]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - (4WD) (03) - TRANSMISSION
1
3
1.40.0/5
1.40.0/9
2
4wd
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82035214

FLEXIBLE HOSE

1шт.

2

87305938

HYD TUBE

1шт.

3

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
