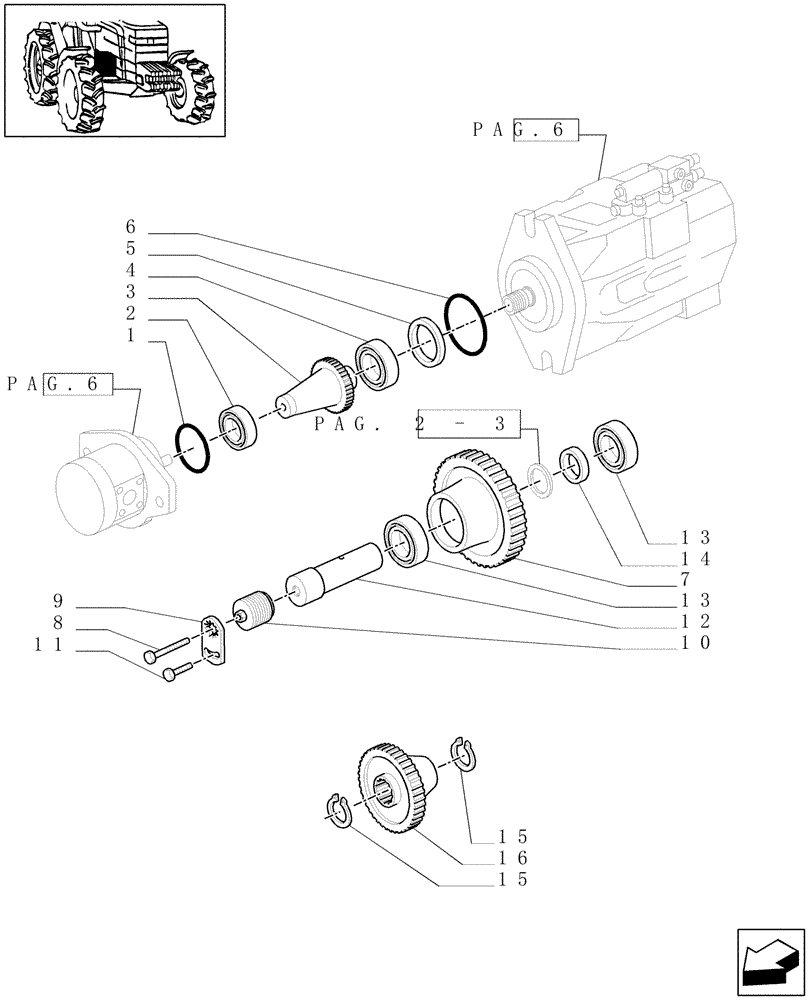

Запчасти Case IH MXM190 (1.32.8/02[01]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

1

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

2

5199218

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.

3

5195239

GEAR

1шт.

4

5186964

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

5

5186955

SPACER,84.5mm ID x 100.5mm OD x 6mm L

1шт.

6

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

7

5195241

GEAR

1шт.

8

16326621

BOLT,Hex Lock, M12 x 1.25 x 50.00mm, 8R, ZND

1шт.

9

5196003

ADJUSTING PLATE

1шт.

10

5196041

RING NUT

1шт.

11

16323330

SCREW

1шт.

12

5195243

SHAFT,30mm OD x 101mm L

1шт.

13

26800120

TAPERED BEARING,30mm x 62mm x 21.25mm

2шт.

14

5196047

SPACER

1шт.

15

11068876

SNAP RING,M40, Ext

2шт.

16

5186886

GEAR

1шт.
