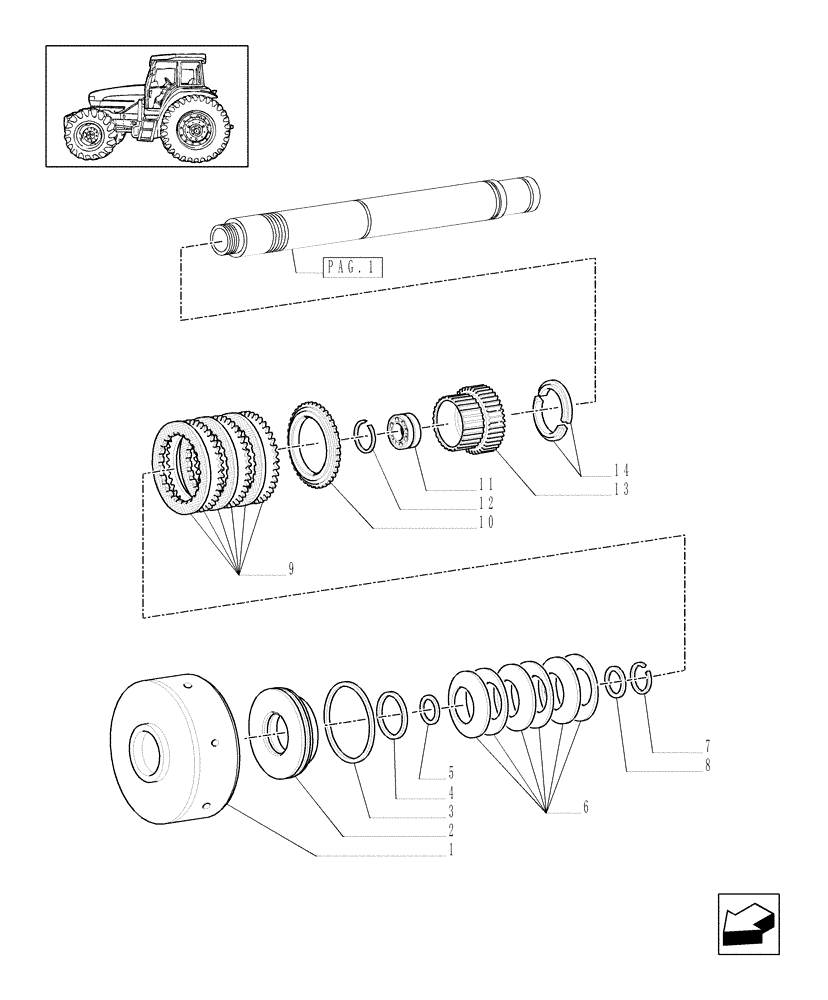

Запчасти Case IH MXM190 (1.32.5[02]) - (VAR.147/1) FULL POWER SHIFT GEAR CHANGE 19X6 (50 KM/H) - CLUTCH COVER PLATE AND RELEVANT PARTS (03) - TRANSMISSION

1

5195117

HOUSING

Clutch

1шт.

2

5187977

PISTON

, Serial Range: -C5486

1шт.

2

87547824

PISTON

, Start Serial: D5486

1шт.

3

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

4

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

5

47127360

RING,61mm ID x 85.07mm OD x 3mm Thk

1шт.

6

5164927

SPRING

, Serial Range: -C5486

6шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

6шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

8

5175981

CIRCLIP,1.5mm Thk

1шт.

9

5167875

KIT

, Serial Range: -C5603

1шт.

9

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

10

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

1шт.

11

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

2шт.

12

5162623

CIRCLIP,80mm ID

1шт.

13

5197196

DRIVING GEAR

1шт.

14

5195894

HALF-RING

Seal, Serial Range: -C4818

1шт.

14

47134108

HALF-RING

Seal, Start Serial: D4818

1шт.
