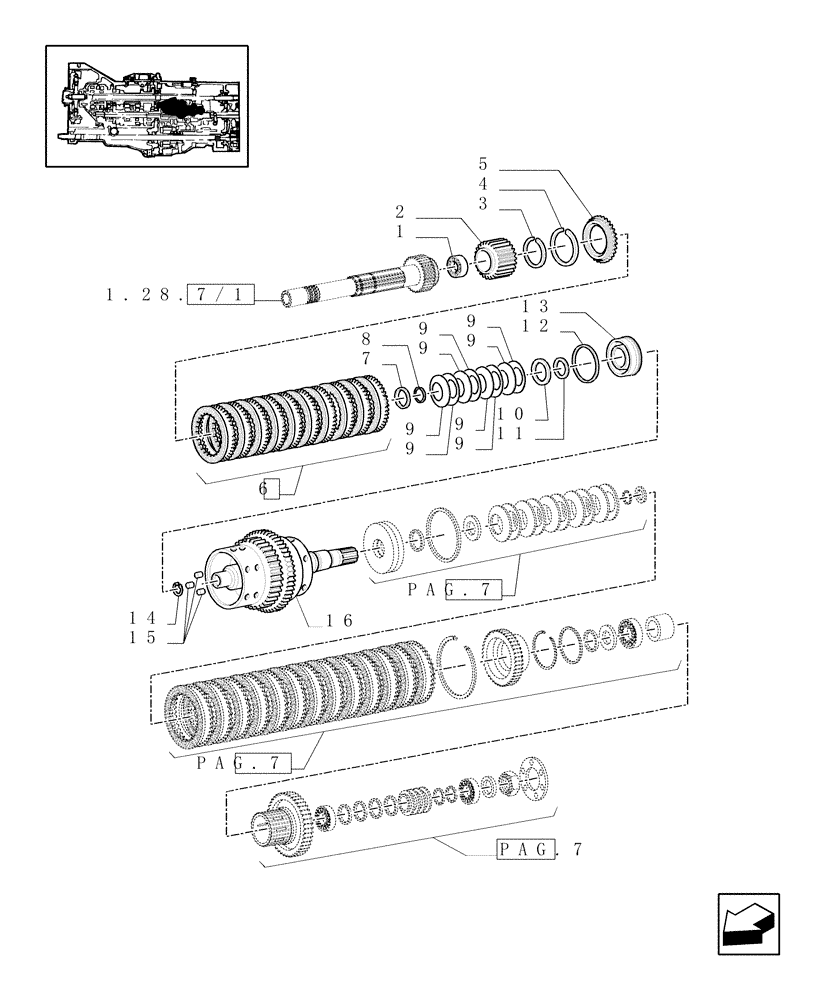

Запчасти Case IH MXM190 (1.32.1/01[06]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

5172328

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

40 x 75 x 26

1шт.

2

5172234

HUB

1шт.

3

5171953

CIRCLIP,2.5mm Thk

1шт.

4

5162251

CIRCLIP,142.5mm ID

1шт.

5

5167824

DISC,113.5mm ID x 154.35mm OD x 7.5mm Thk

1шт.

6

5172229

KIT

Clutch Plates, Serial Range: -C5603

1шт.

6

87530793

CLUTCH PACK

Clutch Plates, Start Serial: D5306

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

60 x 70 x 3

2шт.

8

5175981

CIRCLIP,1.5mm Thk

2шт.

9

5177755

SPRING

, Serial Range: -C5486

8шт.

9

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

, Start Serial: D5486

8шт.

10

5164926

RING

61 x 85 x 3, Serial Range: -C5486

1шт.

10

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

1шт.

11

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

12

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

13

5187425

PISTON

1шт.

14

11059076

SNAP RING,M32, Int

1шт.

15

5162260

PLUG,Round, 10.5mm OD

3шт.

16

5183111

DRIVEN SHAFT

(14, 15)

1шт.
