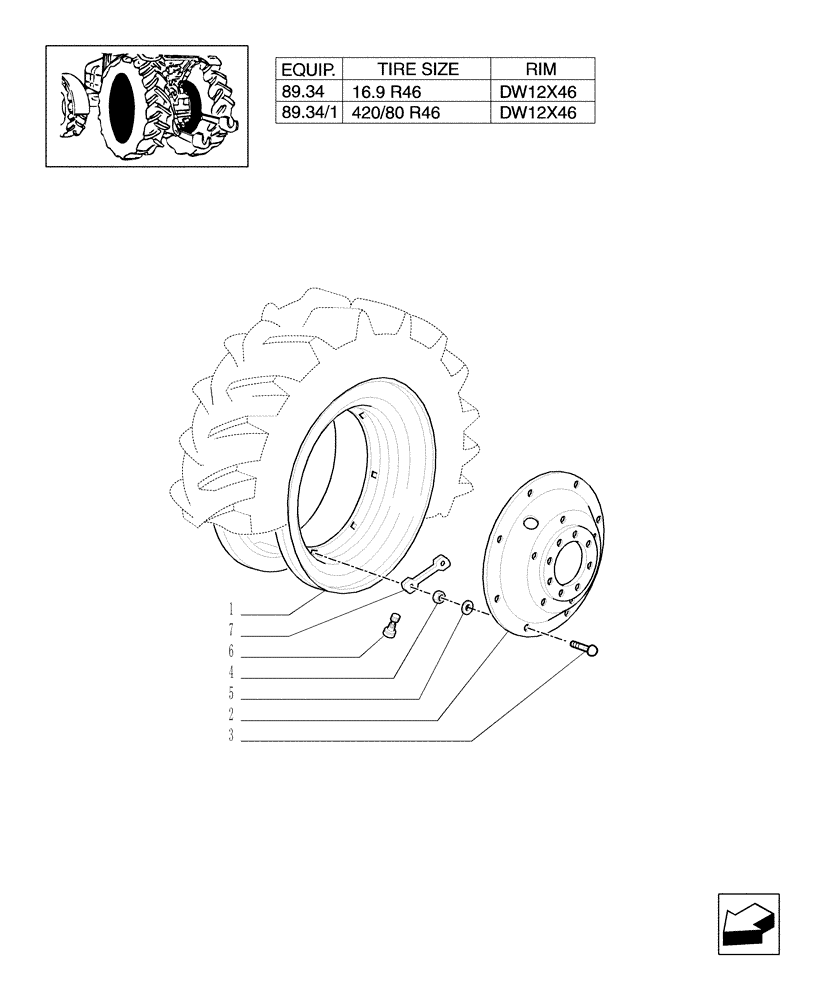

Запчасти Case IH MXM190 (VAR. 960) - WHEEL, REAR Attachments

1

82031161

RIM,DW12X46, 304.8mm W, 8 Bolts, Case Silver

DW12 x 46

2шт.

2

82031195

WHEEL DISC,787.4mm D, 8 Bolts, Case Silver

36"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

16шт.

4

12164124

NUT,M16 x 1.5, Cl 8

16шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

16шт.

6

85700224

VALVE STEM

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

8шт.
