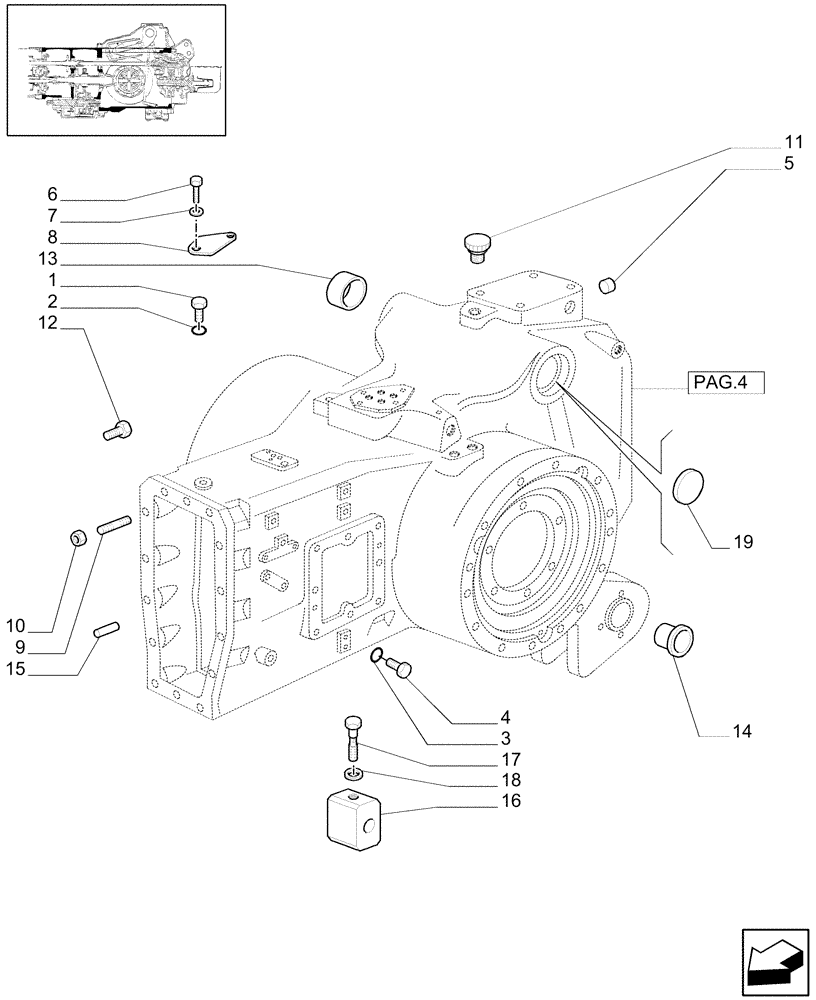

Запчасти Case IH MXM190 (1.21.0/01[06]) - HOUSING, TRANSMISSION, BUSHINGS & PLUGS (03) - TRANSMISSION

1

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

1шт.

2

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

3

11903114

PLUG,M10 x 1.25 x 11

1шт.

4

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

5

14328701

PLUG,M20, Tapered

2шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5196068

PLATE

1шт.

9

11797521

STUD

M14 x 20

1шт.

10

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

11

89636958

BREATHER

1шт.

12

15981031

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

10шт.

13

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

4шт.

14

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

15

5187995

GUIDE PIN,15mm OD x 65mm L

M15 x 65

6шт.

16

5198570

BLOCK

(4WD)

1шт.

17

5198569

BANJO BOLT,M12 x 1.5 x 44mm

(4WD)

1шт.

18

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

(4WD)

3шт.

19

5191505

PLUG

2шт.

W/EQUIP.819, L/HYDRAULIC LIFT

1шт.
