Запчасти Case IH MXM190 (1.21.0/01[04]) - HOUSING, GEARS (03) - TRANSMISSION

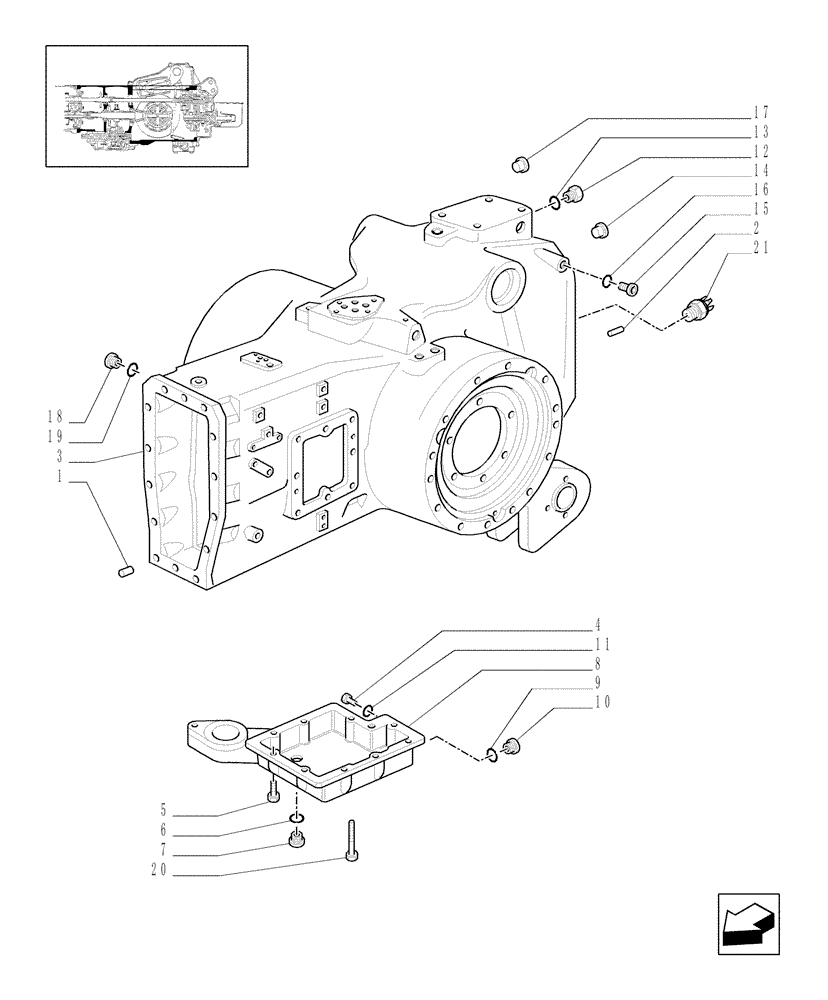

Схема запчастей Case IH MXM190 - (1.21.0/01[04]) - HOUSING, GEARS (03) - TRANSMISSION
8
20
12
18
15
10
17
6
13
16
14
7
2
5
19
9
4
3
1
11
21

Артикул

Название

Примечание

Количество

1

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

4шт.

2

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

6шт.

3

47134583

HOUSING

, Serial Range: -C5021

1шт.

3

47136149

HOUSING

, Start Serial: D5021

1шт.

4

10119414

PLUG,M18 x 1.5 x 16

1шт.

5

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

6

14438285

O-RING,29.5mm ID x 3.0mm

2шт.

7

10119511

PLUG,M33 x 2 x 16, Cl5.8

2шт.

8

47123296

COVER

1шт.

Use oring 14437685, 2.4mm thick X 9.3mm ID for small hole on corner of cover

1шт.

9

89626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

5185747

PLUG,1"13/16-12

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

83957506

PLUG,3/4"

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

14

4998275

PLUG,8,8mm ID x 10,8mm OD x 10.0mm L

1шт.

15

10119414

PLUG,M18 x 1.5 x 16

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

17

5111228

PLUG,16.5mm ID x 20mm OD x 11mm Thk

1шт.

18

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

20

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

5шт.

21

5163540

PRESSURE SWITCH

1шт.

Выбрано товаров: 23
