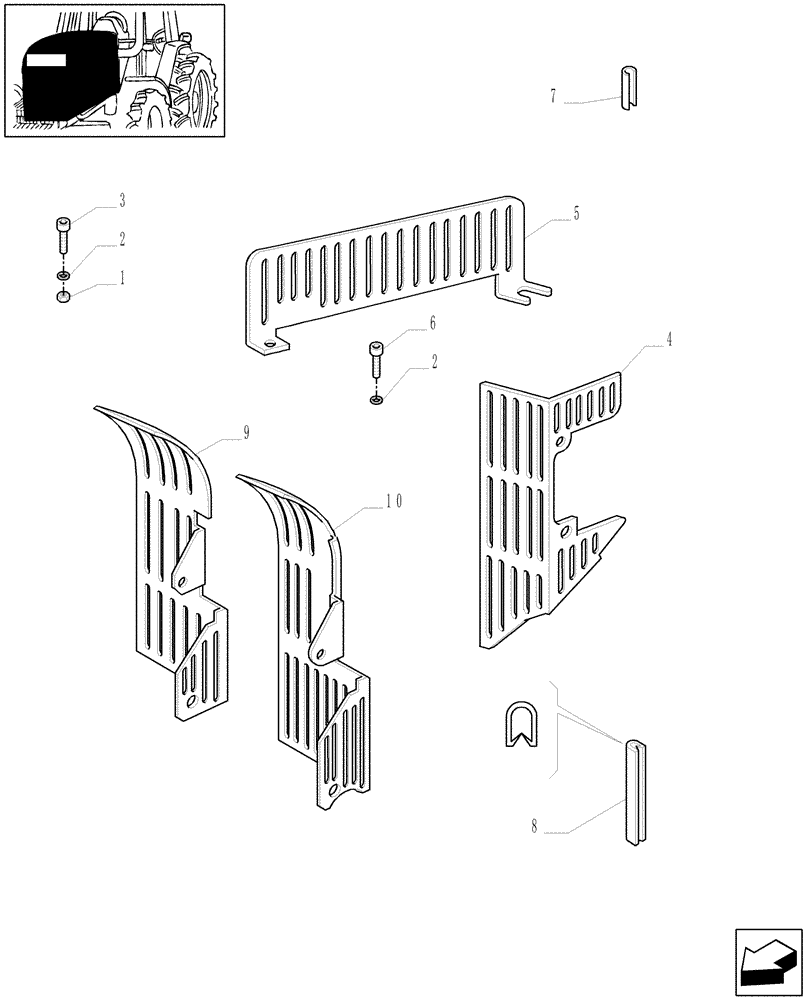

Запчасти Case IH MXM190 (1.19.9/01) - ENGINE GUARD (02) - ENGINE EQUIPMENT

1

11701721

NUT,M10, Cl 10

2шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

3

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

4

87306474

GUARD

1шт.

5

82031928

SHIELD

W/Cooler

1шт.

5

82031923

SHIELD

L/Cooler

1шт.

6

81821889

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cap, HH, G5, 3/8"-16 x 7/8"

1шт.

7

82015330

BUMPER

2шт.

8

83964601

MOLDING,164mm L

1шт.

9

82034489

GUARD

, Serial Range: -ACM270563

1шт.

10

87382751

GUARD

, Start Serial: ACM270564

1шт.
