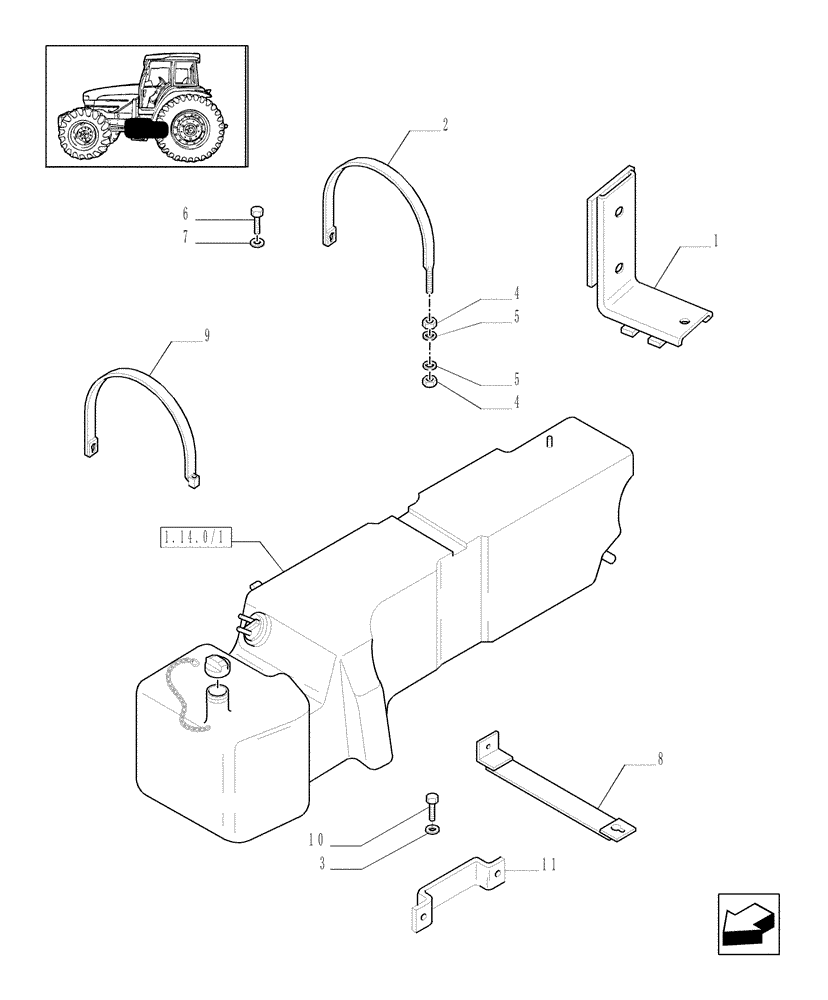

Запчасти Case IH MXM175 (1.14.7/01[01]) - FUEL TANK SUPPORT (02) - ENGINE EQUIPMENT

1

82017925

SUPPORT

1шт.

2

82017920

SECURING STRAP

947 mm

1шт.

3

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

2шт.

4

11701721

NUT,M10, Cl 10

4шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

6

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12 x 24 x 2.5 mm

2шт.

8

82008429

SECURING STRAP

536 mm

1шт.

9

82017923

SECURING STRAP

573 mm

1шт.

9

82008425

SECURING STRAP

521 mm

1шт.

10

15215421

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

11

82019513

SUPPORT

2шт.
