Запчасти Case IH MXM175 (1.93.0/01) - (VAR.252-718) LINING - WITH FOUR OR FIVE CONTROL VALVES WITH ELECTRONIC CONTROL (10) - OPERATORS PLATFORM/CAB

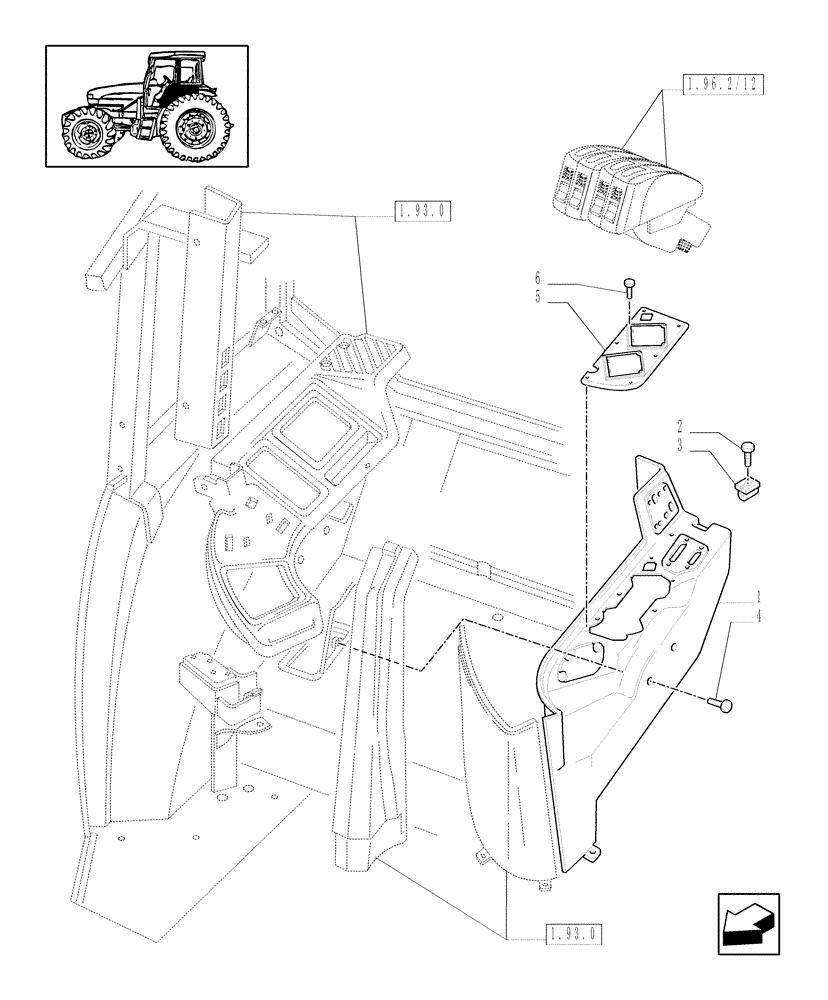

Схема запчастей Case IH MXM175 - (1.93.0/01) - (VAR.252-718) LINING - WITH FOUR OR FIVE CONTROL VALVES WITH ELECTRONIC CONTROL (10) - OPERATORS PLATFORM/CAB
1.96.2/12
3
6
1
5
1.93.0
1.93.0
2
4

Артикул

Название

Примечание

Количество

1

82027664

CONSOLE

1шт.

2

15910001

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 25

6шт.

3

83907330

SPRING NUT

NUT D=8

6шт.

4

15644001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

6шт.

5

82023470

PANEL

1шт.

6

82016959

SCREW,M3.5 x 12mm

M3.5 x 12

8шт.

Выбрано товаров: 6
